Electrical Solder: A Complete Guide to Types, Uses, and Best Practices

The electronic devices we use every day - whether it is the smartphones we carry with us or the indispensable computers at work - all rely on a very important material: electrical solder. Without this material, the circuit simply cannot operate normally. The reason is simple: electronic solder melts at high temperatures, firmly fixing electronic components on the circuit board while ensuring smooth current flow, thus forming stable and reliable electrical and mechanical connections.

In this comprehensive guide, we will delve into electrical solder from multiple perspectives. We will learn about its basic definition, common types, and different application methods in PCB assembly. At the same time, we can also gradually learn common soldering techniques and explain why there is an essential difference between electrical solder and plumbing solder used in pipe repair.

Understanding Electrical Solder

Electrical solder is an alloy material that can melt when heated and is often used to fix and connect electronic components to circuit boards. When you heat it with an electric soldering iron, the electrical solder will melt rapidly and flow to the pads or component leads on the circuit board. After cooling, it will solidify into a firm solder joint, which can not only provide stable mechanical support but also ensure the smooth flow of current, forming a reliable electrical path.

Electronic solder has several important features:

•  It has a relatively low melting point (much lower than that of metals such as copper or brass), so a regular soldering iron is sufficient to complete the soldering.

•  It can form a connection that is both firm and has good electrical conductivity between metal surfaces.

•  It is usually used in conjunction with flux, which helps the solder spread better on the pads while reducing air oxidation and preventing the solder joints from becoming fragile or blackening.

Types of Electrical Solder

1. Leaded Solder

Traditional electrical solder is usually lead-based, with common ratios of 60/40 (60% tin, 40% lead) or 63/37 (eutectic alloys). Its melting point is relatively low, approximately between 183°C and 190°C, making it very easy to operate, and the surface of the solder joints is also bright and smooth. However, lead-based solder paste is harmful to human health and the environment and does not meet the RoHS environmental protection standards.

2. Lead-Free Solder

With the implementation of environmental regulations such as RoHS, lead-free solder has become the standard in professional manufacturing. The most common alloy is SAC305 (tin-silver-copper alloy). This kind of solder is more environmentally friendly, complies with the RoHS standard, and provides long-lasting and high-reliability solder joints. However, its melting point is relatively high, approximately 217°C, and it has stricter requirements for temperature control.

3. Rosin Core Solder

The characteristic of rosin core solder for electronics is that the solder wire has its own flux inside, so no additional flux is required. This design makes soldering more convenient, keeps the solder joints cleaner and less prone to oxidation, making it highly suitable for daily maintenance work. However, smoke will be produced during the soldering process. It is recommended that it be used in conjunction with exhaust equipment.

4. Silver-Bearing Solder

Adding silver to solder alloys can enhance the strength and electrical conductivity of solder joints. Common formulas include Sn-Ag or Sn-Ag-Cu. The advantages of silver-bearing solder are its firm solder joints and good electrical conductivity, which make it reliable in high-performance circuits. However, this type of solder is relatively expensive and has a higher melting point than ordinary solder, generally around 221°C.

Forms of Electrical Solder

In actual electronics assembly, we often see different forms of electronic solder:

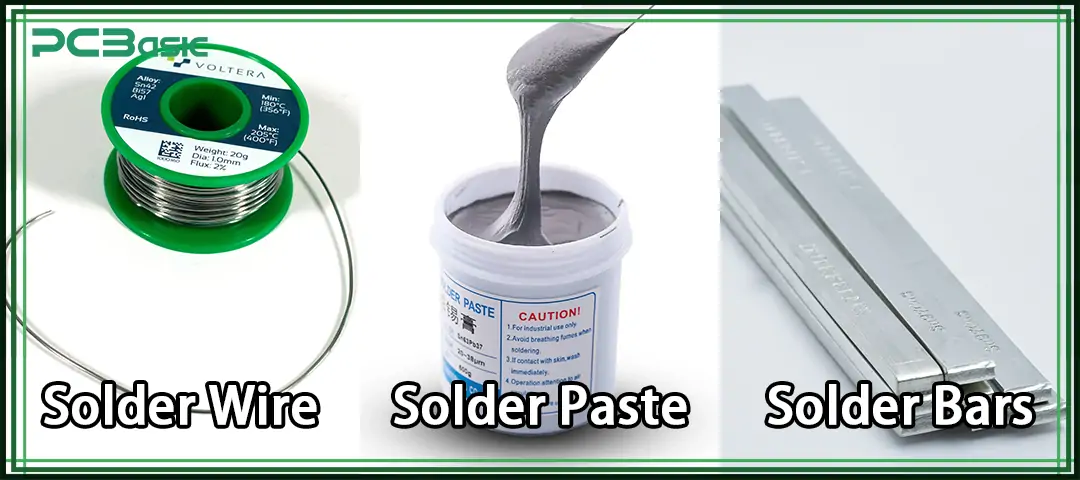

Solder Wire

Solder wire for electronics is the most common one, usually wound on a spool and may have a flux core or not. When heated, it will melt rapidly and fill the area that needs to be soldered. Electrical solder wire is particularly suitable for through-hole soldering, electronic repair and small DIY projects.

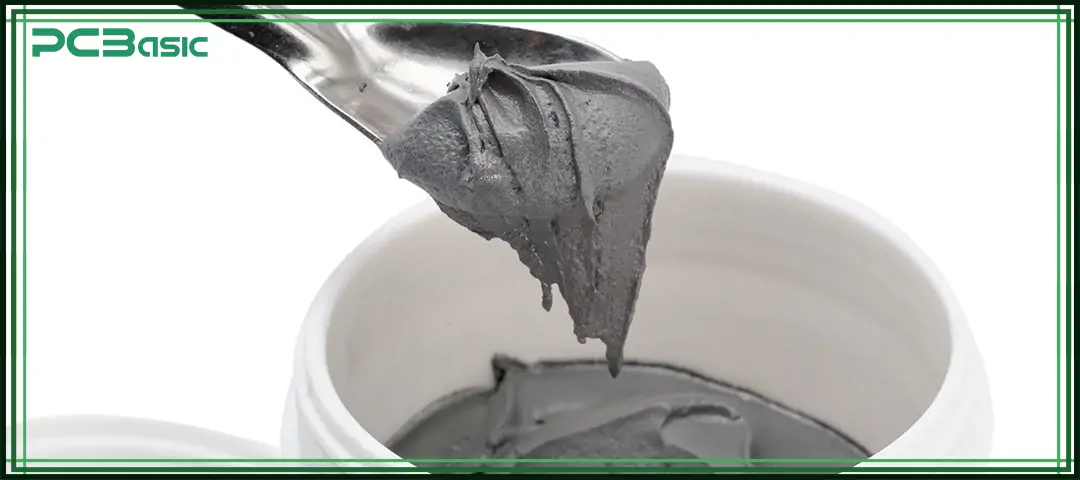

Solder Paste

Solder paste is mainly used in Surface Mount Technology (SMT). It is a paste made by mixing powdered solder alloy powder and flux. Usually, the solder paste is applied to the solder pads through a stencil, then the components are placed on them, and finally heated in a reflow oven to melt the solder and fix the components.

Solder Bars

Solder bars are solid sticks of solder alloy, often used in wave soldering or dip soldering machines. This kind of solder is generally not used among individual enthusiasts, but it is indispensable in mass production.

About PCBasic

Time is money in your projects – and PCBasic gets it. PCBasic is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

Electrical Solder in PCB Assembly

Surface Mount Technology

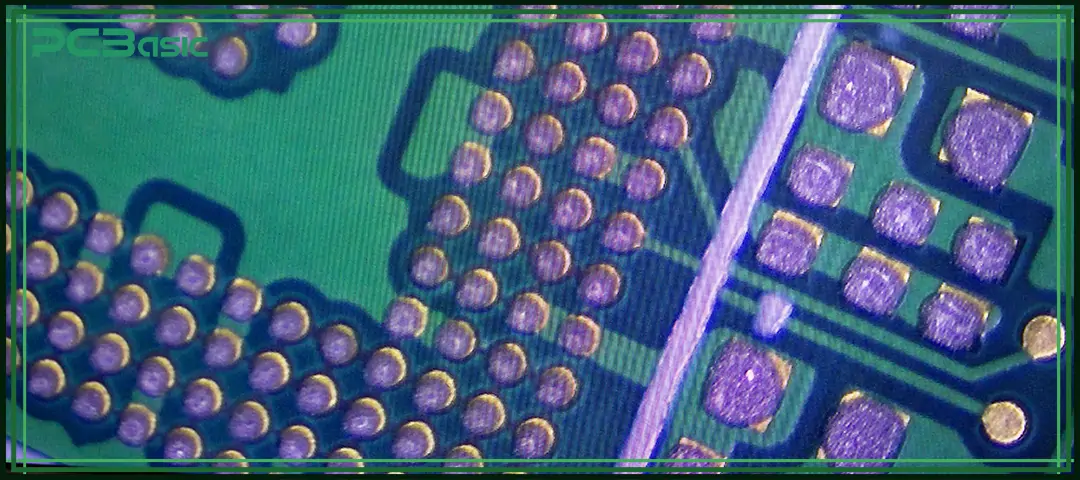

In modern electronic manufacturing, SMT is the most common assembly method. It relies on solder paste to attach various surface-mount components to the pads of the PCB. Solder paste itself is a mixture of electronic solder powder and flux, which can conduct electricity and help the soldering process go more smoothly. After the components are placed correctly, the circuit board will enter the reflow oven and be gradually heated under the set temperature curve, melting the electronic solder and forming stable solder joints after cooling. In this way, the circuit board can simultaneously complete tens of thousands of solder joints in one cycle, which is highly efficient.

Through-Hole Technology

For some devices that require greater mechanical strength, such as high-current sockets, electrolytic capacitors or transformers, manufacturers usually adopt through-hole technology. THT generally uses electrical solder bars in the wave soldering process. After melting in large quantities, a solder wave is formed. When the circuit board passes through the solder wave, the pins inserted into the holes will be completely soldered.

Compared with SMT, the solder joints of THT have higher mechanical strength and are suitable for withstanding greater tensile or compressive forces.

Hand Soldering

In addition, in small-batch production or maintenance, electrical solder wire and soldering irons can also be used for manual soldering.

Whether it is high-efficiency SMT, THT commonly used for high-current devices, or flexible manual soldering, choosing the best solder for electronics is crucial. Different types and forms of solder directly affect the soldering quality, product reliability and service life. Only by choosing the appropriate solder based on the actual application scenarios can the performance and durability of the circuit board reach the ideal level.

How to Solder Electronics? (Step by Step)

If you are a beginner in soldering electronics, you can follow the soldering basics step by step. As long as you master these steps and are familiar with different solder types, you will soon learn how to solder electronics.

1. Prepare the Workspace

Before soldering, set up the working environment first. Soldering can produce smoke, so it is necessary to maintain good ventilation. Tools should also be fully prepared: soldering iron, electrical solder wire, flux, tweezers, scissors and cleaning sponges.

2. Tin the Iron Tip

When the soldering iron is heated to the appropriate temperature, apply a thin layer of solder on the surface of the soldering iron tip with a small amount of electrical solder. This step is called "tinning" or "applying tin", which can improve the heat conduction and make it easier for the soldering iron to transfer heat to the solder joint.

3. Heat the Joint

Touch the soldering iron tip to both the component leads and the PCB pads simultaneously. Both parts should be heated simultaneously instead of heating only one side. Only in this way can the electronic solder flow evenly and adhere firmly.

4. Apply Electrical Solder

After the solder joint has been fully heated, gently place the electrical solder wire to the contact point between the pad and the leads instead of directly touching the soldering iron tip. In this way, the solder will naturally melt and flow into the contact surface, forming a strong connection.

5. Remove and Cool

When there is enough solder, first remove the solder wire and then quickly move the soldering iron away. The solder joints need to be cooled naturally. Do not shake the components or blow air, otherwise the solder joints will become dull or even crack.

6. Inspect the Joint

A good electronic solder joint should be bright, smooth and in a small conical shape. If the solder joints are dull, rough or cracked, it may be cold soldering, and they need to be reheated and refilled with solder.

Electrical Solder vs Plumbing Solder

Plumbing solder is mainly used in water pipe systems. Its function is to weld and seal copper pipes to prevent leaks. Its composition often varies. Some contain lead (for non-potable water use), while others are alloys with higher melting points. This type of solder does not take electrical conductivity into account and does not have a flux core. If it is used in a circuit, not only will soldering be difficult, but it is also prone to cold joints and may even damage components.

Comparison: Electrical Solder vs Plumbing Solder

Conclusion

From learning the soldering basics to mastering advanced soldering techniques, understanding that electrical solder is the foundation of electronic assembly. Choosing the best solder for electronics can ensure reliability, safety and compliance with global standards.

Whether you are trying out a DIY project, repairing equipment, or designing a PCB, choosing the right electrical solder wire, solder paste, or solder bar will bring about completely different results. Now that you have learned how to solder electronics, the next step is to keep practicing. The more you solder, the stronger and more beautiful the solder joints will be, and at the same time, you will also appreciate the important role that electronic soldering plays in modern technology.
