PCB and PCBA Quality Control | A Comprehensive Guide

In the electronics industry, PCB quality control and PCBA quality control are essential for ensuring the reliability and performance of electronic products. Whether it's a consumer gadget or industrial machinery, high-quality PCBs and PCBAs are crucial for long-term functionality and customer satisfaction.


This guide provides an overview of key quality control methods, including visual inspection, electrical testing, and advanced techniques like X-ray inspection. It also highlights the importance of precise PCBA assembly, especially for specialized applications like high-quality remote control PCBA.


We’ll explore best practices to help manufacturers avoid defects, optimize production processes, and deliver quality PCB products that meet industry standards. Whether you're an engineer or just starting out, this guide will help you understand how to maintain the highest quality in your PCB and PCBA manufacturing.



What is PCB Quality Control?


PCB (Printed Circuit Board) is the foundation of most modern electronics, acting as the primary carrier for electrical components. Ensuring the quality of the PCB is crucial for the overall performance and reliability of any electronic device. PCB quality control refers to the processes and practices put in place to verify that each PCB meets industry standards and specifications, preventing defects that could lead to system failures. Effective PCB quality control ensures that electrical connections are stable, components are securely mounted, and the board will function correctly under operational conditions.


Good PCB quality guarantees that the end product will have the desired performance characteristics, such as power efficiency, signal integrity, and durability. Without proper PCB quality control methods, defects such as poor soldering, short circuits, or incorrect component placements could compromise the device’s performance, leading to customer dissatisfaction and costly repairs.


What is PCBA Quality Control?


PCBA (Printed Circuit Board Assembly) refers to the process of mounting and soldering components onto a PCB to create a fully functional electronic circuit. PCBA quality control focuses on ensuring the assembled PCB meets both the design and functional specifications. This includes inspecting the placement and soldering of components, verifying electrical functionality, and ensuring that the board performs as expected within the intended product.


PCBA quality control is especially important because, unlike a bare PCB, the assembly stage introduces additional complexity and potential points of failure. Problems such as incorrect component orientation, poor solder joints, or electrical connectivity issues must be addressed to avoid product malfunctions. High-quality remote control PCBA assemblies, for example, require exceptional precision in component placement and soldering, as even small errors can affect signal transmission and system functionality.


Importance of Quality in PCB and PCBA Manufacturing


Why PCB Quality is Crucial for Electronics


PCB quality is a foundational aspect of electronics manufacturing. A quality PCB ensures that electrical connections are reliable and stable, supporting the overall function of the device. Poor PCB quality can lead to issues such as signal interference, electrical shorts, or open circuits, which in turn cause the failure of the final product. For instance, a PCB with poorly etched copper traces might not conduct electricity effectively, leading to device malfunction.


When manufacturing a PCB product, ensuring PCB quality from the outset reduces the likelihood of defects in later stages, such as assembly and final testing. A reliable quality PCB helps prevent long-term problems like overheating, power loss, or failure to meet performance specifications, which are critical in the production of high-performance electronics.


Ensuring High-Quality Remote Control PCBA


The demand for high-quality remote control PCBA has risen as more devices, from home appliances to consumer electronics, rely on advanced PCBAs for communication and control. PCBA quality control in remote control applications is particularly important because these devices require accurate signal transmission and minimal interference. Even slight deviations in PCB design or assembly could result in unreliable performance, such as signal drops or miscommunication between the remote control and the device it is controlling.


To achieve high-quality remote control PCBA, manufacturers must focus on maintaining strict PCB quality control methods during both the PCB fabrication and the assembly stages. This involves ensuring the correct placement and orientation of components, particularly for RF (radio frequency) components, and ensuring that the solder joints are clean and well-formed. Precision in these areas is vital for ensuring that the remote control PCBA operates reliably and meets stringent performance requirements.



PCB Quality Control Methods

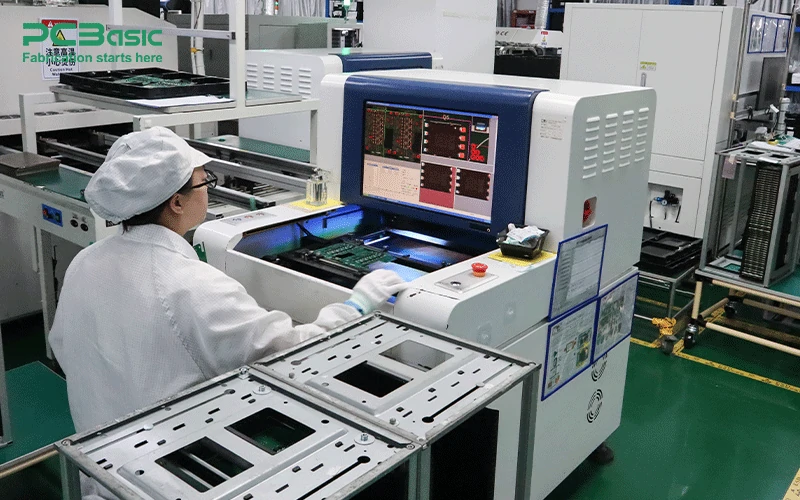

Visual Inspection and Automated Optical Inspection (AOI)





Visual inspection is one of the simplest and most effective methods for detecting visible defects on a PCB. It involves manually or automatically inspecting the board for issues such as misaligned components, broken solder joints, or physical damage. Automated Optical Inspection (AOI) is particularly effective in enhancing the speed and accuracy of this process. AOI systems use high-resolution cameras and sophisticated software to detect issues like missing components, improper soldering, and short circuits that may not be visible to the human eye. PCB quality control methods like AOI are crucial for ensuring high-quality PCB production, as they can catch defects early in the manufacturing process, minimizing the risk of costly downstream failures.

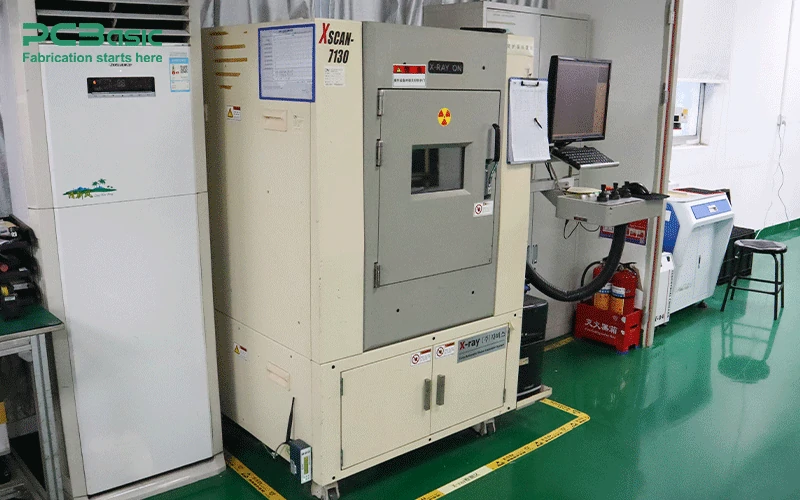

X-Ray Inspection for Internal Layer Quality





For multi-layer PCBs, X-ray inspection is an essential tool in PCB quality control. This method allows manufacturers to inspect the internal layers of the PCB without the need for disassembly. X-ray inspection helps detect hidden defects such as poor soldering, incomplete vias, or internal short circuits. Ensuring the quality of internal layers is crucial for PCB products that require high reliability, such as those used in automotive, aerospace, and medical devices. Using X-ray technology in PCB quality control provides a non-destructive way to ensure that PCB products meet stringent quality standards.

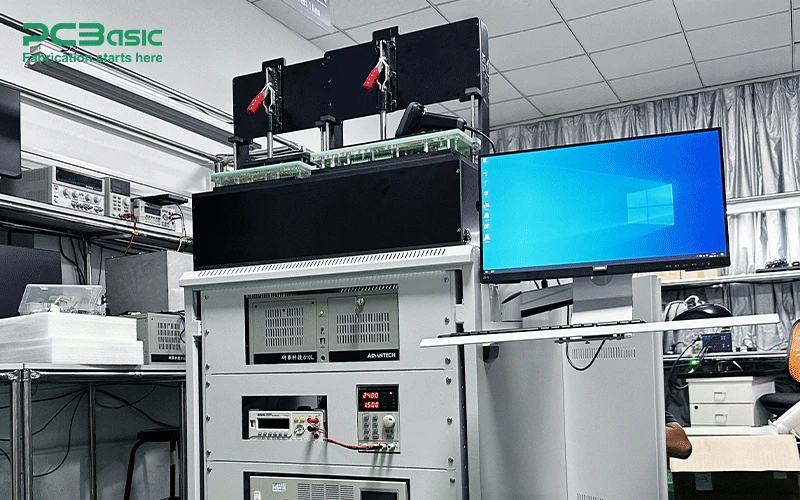

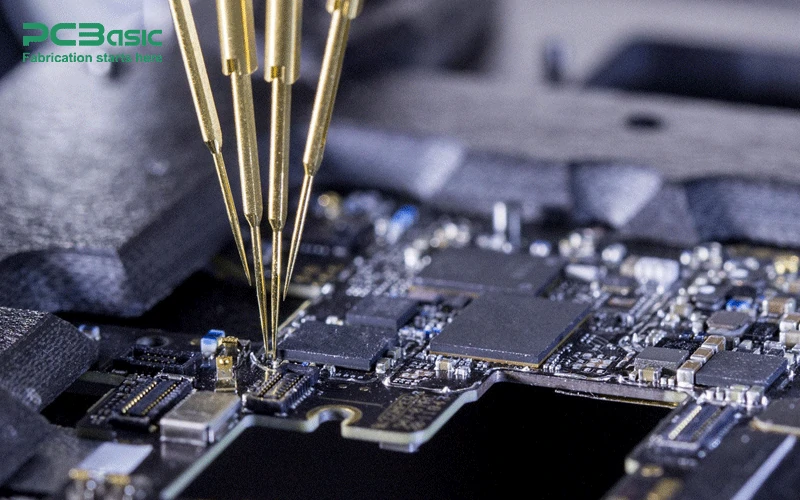

Electrical Testing and Continuity Checks







Electrical testing is a critical step in ensuring that the PCB product functions as intended. This involves verifying the integrity of electrical connections across the board and ensuring that no shorts or open circuits exist. Continuity checks are often performed to ensure that signals pass correctly through the PCB and that all connections meet the required specifications. This is especially important in high-quality PCB manufacturing, where reliability is paramount. Automated testing equipment can quickly check the continuity of every connection on the PCB, ensuring that the PCB quality is up to standard before moving forward to the assembly stage.


Thermal Cycling and Stress Testing




Thermal cycling and stress testing simulate real-world conditions to ensure that the PCB product can handle extreme temperatures and environmental stress. Thermal cycling involves subjecting the PCB to rapid temperature changes to test its durability and the strength of its components and solder joints. This type of testing is vital for products that will operate in varying or harsh environmental conditions, such as automotive electronics or outdoor devices. By performing thermal cycling and stress testing, manufacturers can ensure the long-term reliability of their PCB products and detect potential failure points that might otherwise go unnoticed.


Soldering Quality Control




Soldering is a critical step in both PCB fabrication and PCBA quality control. The quality of solder joints directly impacts the electrical connectivity and mechanical strength of the PCB assembly. Poor soldering can result in issues like weak connections, cold joints, or bridging between pads, leading to device malfunctions. Strict PCB quality control methods must be implemented to maintain soldering quality throughout the assembly process. This includes controlling the temperature of the soldering iron or reflow oven, using high-quality solder materials, and inspecting the joints after assembly. By ensuring proper soldering quality, manufacturers can produce quality PCBs that will perform reliably throughout their lifecycle.



By integrating these PCB quality control methods, manufacturers can ensure the production of high-quality PCBs and PCBA products that meet or exceed industry standards. Each step, from visual inspection to thermal stress testing, plays a crucial role in maintaining the quality and performance of the final product, ultimately ensuring customer satisfaction and product reliability.


PCBA Quality Control Practices

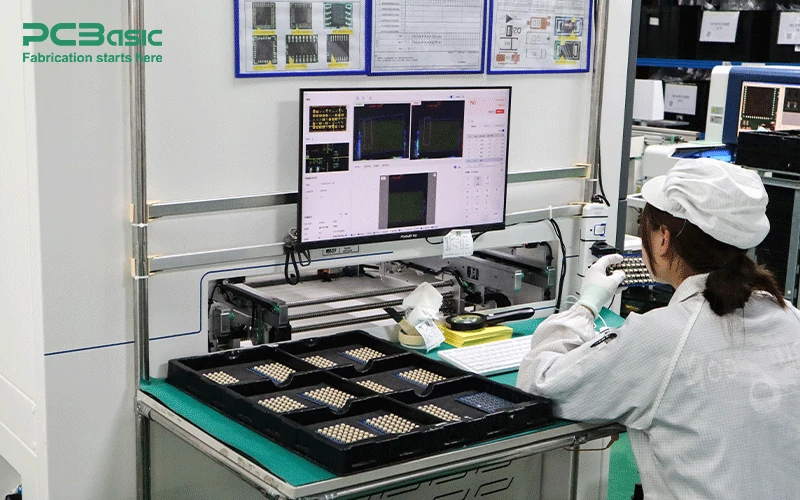

Component Placement and Orientation


Precise component placement and orientation are vital for the functionality and reliability of the PCBA. Incorrect placement can result in short circuits, malfunctioning devices, or even catastrophic failure of the electronic product. For PCBA quality control, it is important to verify that all components are placed accurately according to the PCB design specifications. Automated pick-and-place machines, along with visual inspections, can help achieve this level of precision. Best practices include using proper component orientation indicators (e.g., polarity marks), double-checking placement before soldering, and employing AOI (Automated Optical Inspection) systems to catch any misplacements early.


Soldering Process in PCBA


The soldering process is a critical part of PCBA quality control, as the quality of the solder joints directly affects the electrical performance and mechanical integrity of the assembly. There are several soldering methods used in PCBA production:


· Wave soldering is typically used for through-hole components, where a wave of molten solder flows over the PCB, creating reliable connections.

· Hand soldering is used for more complex or delicate tasks, often for small runs or manual rework.

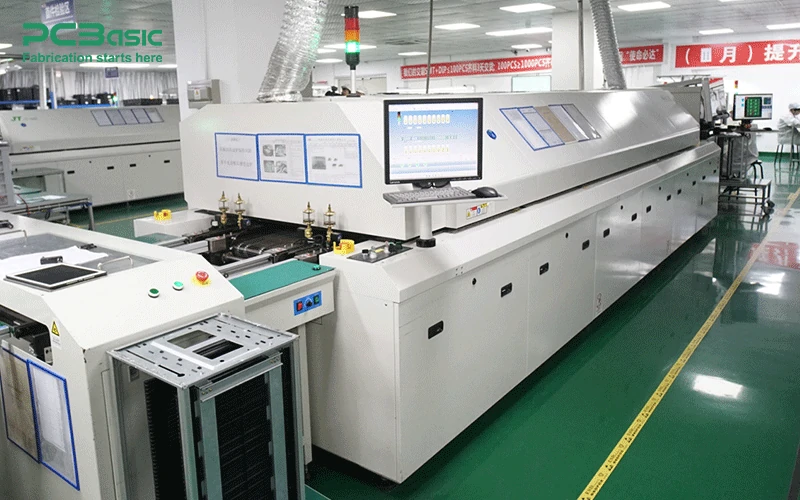

· Reflow soldering is the standard for surface-mount technology (SMT), where solder paste is applied to the pads before the board is passed through a reflow oven to melt the solder. Ensuring high-quality solder joints requires consistent control of soldering temperatures, proper flux application, and timely handling to prevent defects like cold solder joints, solder bridges, or insufficient solder.


Functional Testing and Burn-In Testing




Functional testing verifies that the PCBA performs as intended by simulating its end-use environment. Testing typically includes checking the functionality of all components, verifying voltage and current specifications, and ensuring that no defects, such as open circuits or shorts, are present. Burn-in testing is a form of stress testing where the assembled board is powered for an extended period to accelerate the detection of potential failures due to component defects or poor soldering. This is especially important for high-reliability applications, such as aerospace and medical devices, where a failure could be catastrophic. Both tests help identify latent defects early in the process, reducing the risk of faulty products reaching the market.


Conformal Coating and Protection


To enhance the durability of the PCBA, manufacturers often apply conformal coatings. These coatings protect the board from environmental factors such as moisture, dust, and corrosive substances. Conformal coating can be applied using various methods, including spraying, dipping, or brushing. The coating material used typically includes acrylics, silicones, and polyurethanes. It is essential to apply the coating uniformly and avoid covering critical components like connectors or heat-sensitive areas. Proper curing and testing of the coating ensure the protection remains effective over time, improving the PCBA's long-term reliability and performance in harsh environments.



Ensuring High-Quality PCB Products for Global Markets


Certifications and Standards for PCB Manufacturing




Adhering to internationally recognized PCB manufacturing standards ensures that PCB products meet both customer and regulatory requirements. Certifications like ISO 9001, which focuses on quality management systems, and IPC-2221, which provides standards for PCB design, are crucial for maintaining consistent, high-quality production. These standards guide manufacturers in setting up efficient, quality-driven processes, ensuring that the final product is reliable and safe for use in various industries. Compliance with these standards is often a requirement for entering global markets, demonstrating a commitment to PCB quality and reliability.


Sustainability in PCB Manufacturing


The shift toward eco-friendly PCB production methods reflects the growing demand for sustainable manufacturing practices. This includes reducing waste, recycling materials, and using environmentally friendly chemicals in the PCB manufacturing process. Integrating quality control with sustainability efforts ensures that the manufacturing process remains efficient while minimizing environmental impact. By focusing on green practices, PCB manufacturers can not only meet regulatory requirements but also appeal to consumers who value sustainability, while maintaining high-quality PCB production standards.



Common PCB and PCBA Defects and How to Prevent Them


Identifying Common PCB Defects


Some of the most common defects in PCBs include open circuits, short circuits, copper defects (e.g., poor etching), and incorrect component placements. These issues can lead to device malfunction or total failure. PCB quality control methods such as X-ray inspection, electrical testing, and visual inspection help detect these defects early in the production process. Ensuring that design files are thoroughly checked and following strict fabrication guidelines will reduce the risk of these defects occurring in the first place.


Addressing PCBA Assembly Defects


Common PCBA assembly defects include solder bridges, insufficient soldering, component misplacement, and over-heating of sensitive parts. Effective PCBA quality control requires a combination of automated inspection (like AOI), functional testing, and manual inspection to catch these errors before they lead to product failures. Soldering defects, in particular, can be prevented by controlling solder paste application, monitoring the reflow process, and conducting regular inspections during the assembly process.



Conclusion


The future of PCB and PCBA quality control lies in adopting cutting-edge technologies, such as AI-driven inspections and automated testing systems. These innovations promise to increase inspection accuracy, reduce human error, and improve efficiency in identifying defects. As the complexity of electronic devices increases, so too will the need for more sophisticated quality control techniques. Continuous improvement in these areas will result in even more reliable and durable PCB products.
