Power Supply Symbols Explained

Ever stared at a power adapter and wondered what those weird squiggly lines mean? You're not alone. Those little symbols aren't just decoration. They're actually telling you exactly what kind of electricity you're dealing with.

Here's the thing: every electronic device speaks this universal language of power supply symbols. Your phone charger has them. Your laptop adapter has them. Even that random wall wart powering your router has them plastered all over it.

The problem is that most people ignore these symbols until something goes wrong. Like when you accidentally fry your expensive gadget because you grabbed the wrong power supply from your junk drawer.

Let's fix that. We'll break down the most important electrical circuit symbols you'll actually encounter in real life. No engineering degree required.

Types of Power Sources and Their Symbols

Before we dive into specific power supply symbols, you need to understand the two types of electricity flowing through your world.

Direct Current (DC) Power

Think of DC power like water flowing steadily through a hose in one direction. Never changes. Never stops. Just keeps going.

Your phone battery? DC. Your car battery? DC. That portable speaker you take camping? Yep, DC.

The DC power supply symbol looks like a solid line sitting above a dashed line. Simple. Clean. You'll see this battery circuit symbol everywhere once you start looking.

Real talk: every time you plug your phone into a wall charger, you're converting the house's AC power into DC power. Your phone can't handle anything else.

Alternating Current (AC) Power

AC power is like that friend who can't make up their mind. It constantly switches direction, back and forth, 60 times per second in the US (50 times in Europe, but that's another story).

The AC power source symbol looks like a wavy line. Makes sense, right?

Every wall outlet in your house delivers AC. Your microwave, dishwasher, that ancient desktop computer in your closet... all AC-powered.

But here's where it gets interesting. Most of your electronics actually run on DC internally. They just use transformers and converters to change that AC wall power into the DC they need. It's like having a translator between your wall and your devices.

Power Supply Polarity Symbols

Why Polarity Matters in DC Adaptors

You might be wondering why some devices work when you flip the plug, while others definitely don't. That's polarity for you.

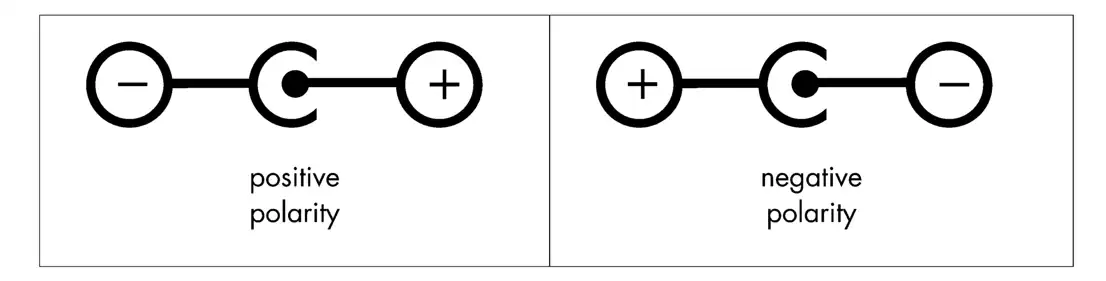

Centre Positive Polarity Symbol

Most consumer electronics use center positive polarity. The power source symbol shows a plus sign (+) in the middle circle and a minus sign (-) on the outer ring.

Your wireless router uses center positive. Gaming headsets are probably center positive. That LED strip lighting up your desk is almost certainly center positive.

Centre Negative Polarity Symbol

Some devices (looking at you, guitar pedals) decided to be different. They use center negative polarity. The symbol flips: minus (-) in the center, plus (+) on the outside.

Mix these up and you'll either get nothing... or worse, magic smoke. That's the smell of fried electronics, and trust me, you don't want to experience it.

Here's what I do: before plugging in any device, I check three things. Voltage, amperage, and polarity. Takes five seconds and saves expensive mistakes.

Common Power Supply Abbreviations

Power supply labels love their abbreviations. Here are the ones that actually matter:

Here's what matters: VAC always pairs with that wavy AC power source symbol. VDC always goes with the solid/dashed DC voltage source symbol.

How to Read Power Supply Rating Plates

Let's say you lost your laptop charger. You find one in a drawer, but is it safe to use?

Here's your step-by-step guide to know:

1. Find the input specs: Should read something like "100-240VAC 50/60Hz" with a wavy line symbol

2. Check the output: Look for "19VDC 3.42A" with the solid/dashed line symbol

3. Verify polarity: Find that little diagram showing center positive or negative

4. Match your device: Your laptop should have similar specs listed somewhere

Example from my own laptop charger:

•  Input: 100-240VAC, 50/60Hz (universal input, works anywhere)

•  Output: 20VDC, 3.25A (specific to my laptop model)

•  Polarity: Center positive (standard for laptops)

The input range "100-240VAC" is genius, by the way. It means the same charger works whether you're in the US (120V) or Europe (230V). Just need the right plug adapter.

About PCBasic

Time is money in your projects – and PCBasic gets it. PCBasic is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

Safety & Construction Symbols in Power Supplies

Power supplies include safety symbols for good reasons. People used to get electrocuted a lot more often before these became standard.

•  Protective Earth Symbol: Looks like three lines forming a pyramid. Means the device needs to be grounded. Don't use an adapter that removes the third prong.

•  Class II Construction: Two squares, one inside the other. This means double insulation. No ground wire is needed because the device is built with extra safety layers.

•  Fuse Link Symbol: Shows there's a fuse inside that'll blow if something goes wrong. It's like a safety valve for electricity.

•  Short-Circuit Proof: Means the transformer can handle brief shorts without catching fire. Nice to have.

These aren't just suggestions. They're based on decades of accidents and improvements. The electrical circuit symbols exist because someone, somewhere, learned the hard way.

Applications of Power Supply Symbols in Electronics

In Schematic Diagrams

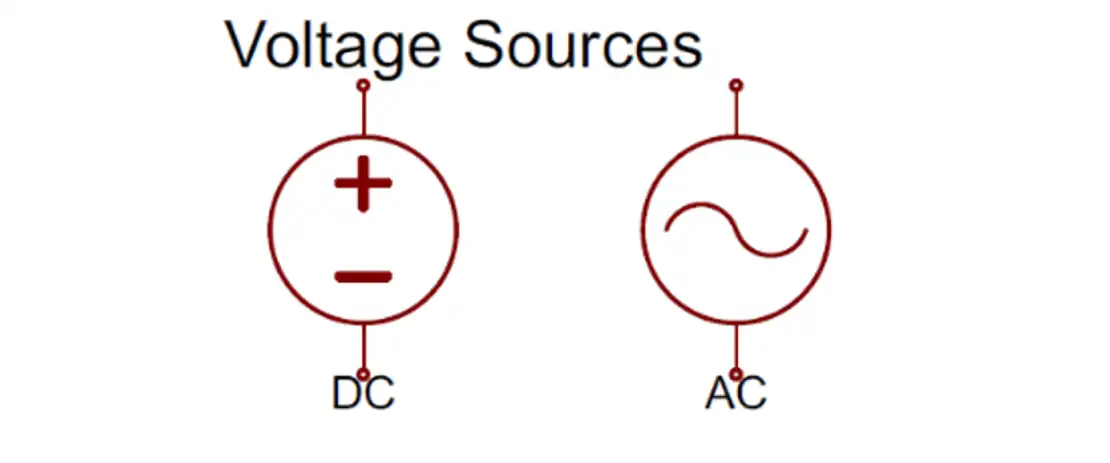

Engineers sketch out circuits all day long, and they lean heavily on schematic symbols like the DC voltage source symbol and the AC power source symbol. Makes sense when you think about it. You can't just draw little pictures of batteries every time.

Students get bombarded with these symbols from day one. Every electronics textbook is packed with battery circuit symbols and DC supply diagrams. By graduation, they've seen thousands of them. The symbols become second nature, like reading musical notes for a pianist.

In Consumer Electronics

Your phone charger has that little DC power supply symbol stamped right on the side. Check it next time you're waiting for your battery to hit 100%. Most people walk past this stuff every day without noticing.

TV sets get marked with the AC power source symbol for their input requirements. Same with your coffee maker, microwave, pretty much anything that plugs into the wall.

Game consoles are interesting because they include those polarity power supply symbols we talked about earlier. PlayStation, Xbox, Switch... they all speak this same electrical language. Your gaming setup probably has a dozen different power symbols if you really start looking.

In Industrial Systems

Factories take this stuff seriously. They use massive uninterruptible power supplies that get marked with both AC power source symbols and DC power supply symbols. When a power outage could shut down a production line worth million, those symbols aren't just helpful. They're critical.

Test equipment is where things get really symbol-heavy. Oscilloscopes, multimeters, signal generators... they're covered in multiple power source symbols and safety electrical circuit symbols. Each one tells technicians exactly what they're working with before they even turn the thing on.

Conclusion

Power supply symbols aren't just random drawings. They're a safety system that prevents you from accidentally destroying expensive electronics.

The basics boil down to this:

•  Wavy line = AC power (wall outlets)

•  Solid/dashed lines = DC power (batteries, adapters)

•  Check voltage, amperage, and polarity before connecting anything

•  Safety symbols exist for good reasons

Master these symbols and you'll never again wonder if that random adapter in your drawer will work with your device. More importantly, you won't accidentally turn your electronics into expensive paperweights.

The next time someone asks why their device stopped working after they "just plugged it in," you'll know exactly where to look first.
