In electronic and embedded systems, microcontroller and microprocessor are the two most common terms. Both types of core components are very important in modern technology, but their structures, functions and application scenarios are quite different. Different choices for them will also directly affect cost, power consumption, performance and system complexity.
Many people may think that microprocessors and microcontrollers are the same because they both control electronic devices like "brains". But in fact, their uses are completely different: microcontrollers are more suitable for dedicated, simple and real-time control tasks, while microprocessors are better at handling complex computations, multitasking and operating systems.
Therefore, understanding microcontrollers vs. microprocessors is crucial to students, engineers and enthusiasts. This article will make a detailed comparison between microprocessors and microcontrollers, including their definitions, architectures, differences, and applications. After reading this, you will be able to clearly determine when to choose a microcontroller and when to choose a microprocessor.

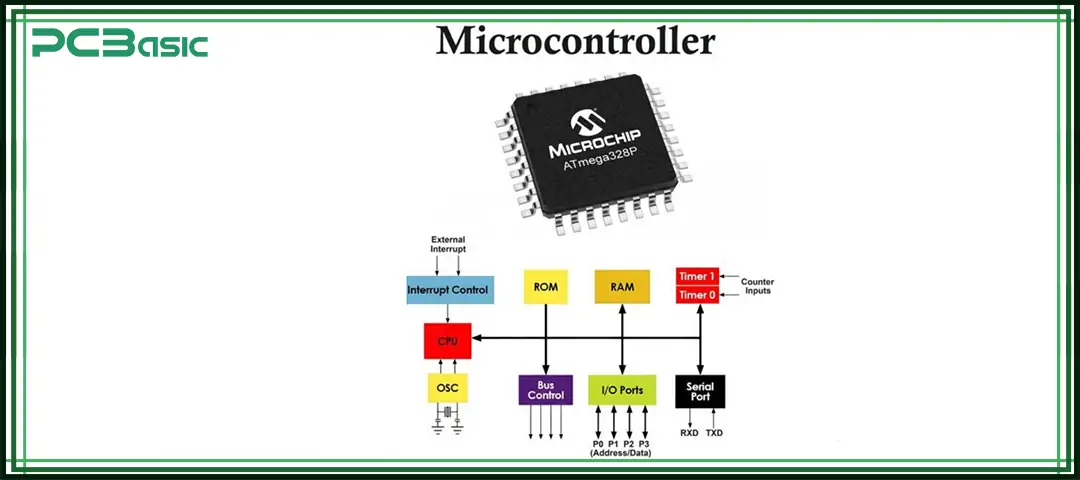

What Is a Microcontroller (MCU)?
A microcontroller (MCU) is a single-chip compact computer system specifically designed to control specific tasks in electronic devices. Unlike a microprocessor, a microcontroller integrates the CPU, operational memory (RAM), program memory (Flash or EEPROM), and various input/output (I/O) peripherals on a single chip. This integrated architecture makes microcontrollers with the characteristics of low cost, small size, low power consumption and high energy efficiency.
Due to its high level of integration, microcontrollers can operate independently without additional external components or complex operating systems. They are particularly suitable for performing repetitive tasks with high real-time requirements and are widely used in scenarios that demand low power consumption and high reliability.
In terms of hardware architecture, most microcontrollers adopt the Harvard architecture. This architecture separates the data buses from the instruction buses, enabling the CPU to simultaneously obtain instructions and access data, significantly enhancing the execution speed and response capability of real-time applications. Unlike microprocessors that pursue multitasking and complex computing, microcontrollers are more suitable for dedicated control tasks.

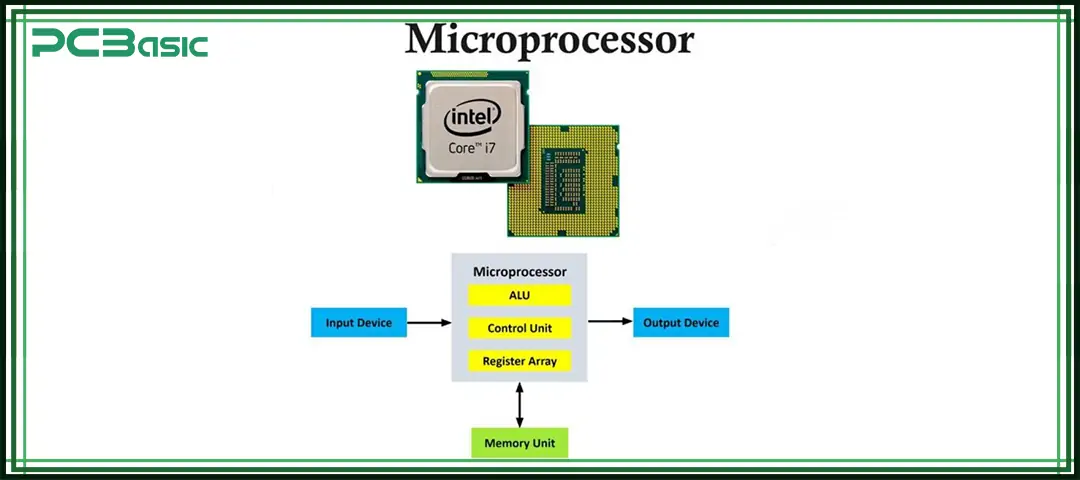

What Is a Microprocessor (MPU)?
The microprocessor (MPU) is the core of modern computer systems and is often referred to as the "brain" of general-purpose computing. It is a programmable chip that can obtain instructions from memory, decode the instructions, perform operations, and then output the results. In simpler terms, a microprocessor is a digital chip that can perform arithmetic and logical operations based on the input it receives.
Structurally, a microprocessor contains only a CPU inside. Unlike microcontrollers, microprocessors typically do not integrate memory or input/output components on the same chip, but instead rely on external memory, storage devices, and various peripherals. Although this design can offer higher performance and greater flexibility, it also makes the system more complex, consumes more power and costs more.
Most microprocessors are based on the von Neumann architecture, which uses the same set of bus system to transmit data and instructions, with a relatively simple design and easier scalability and reliability to achieve. Due to its powerful processing capabilities, microprocessors are well-suited for high-demand applications.
Essentially, a microcontroller is a small, self-contained computer that is highly suitable for embedded control. A microprocessor, on the other hand, is a more powerful computing unit, mainly used for general computing tasks that require external hardware support.
About PCBasic
Time is money in your projects – and PCBasic gets it. PCBasic is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

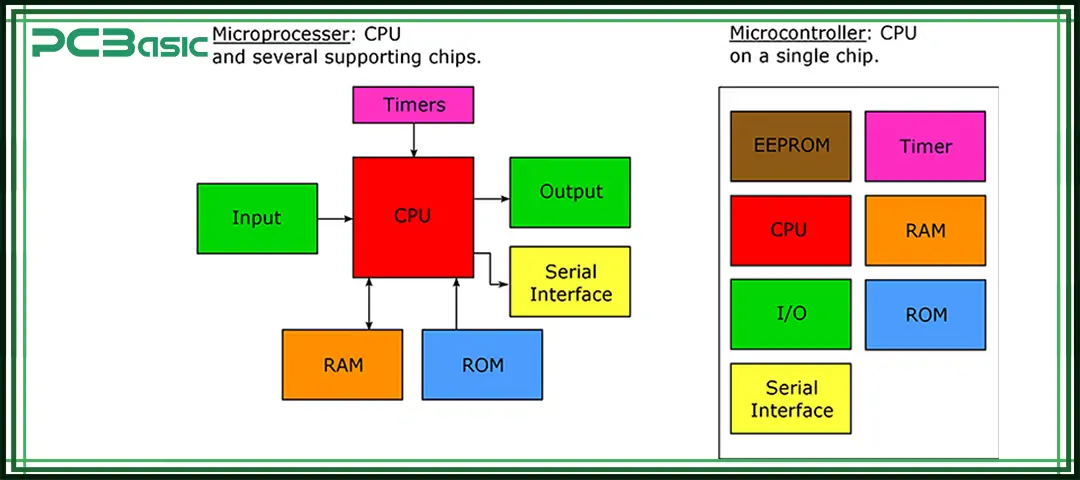

Microcontroller vs Microprocessor: Side-by-Side Comparison
|
Feature
|
Microcontroller (MCU)
|
Microprocessor (MPU)
|
|
Definition
|
A compact computer on a single chip, designed for specific control tasks.
|
The central unit of general-purpose computing, designed for multitasking and high performance.
|
|
Purpose
|
Task-specific control in embedded systems.
|
General-purpose computing in PCs, servers, and smartphones.
|
|
Integration
|
High: CPU + RAM + ROM/Flash + I/O + peripherals all on one chip.
|
Low: usually only CPU, requires external RAM, ROM, storage, and peripherals.
|
|
Architecture
|
Typically Harvard architecture (separate instruction and data buses → faster real-time performance).
|
Typically von Neumann architecture (shared bus for data and instructions → simpler, scalable).
|
|
Processing Power
|
Lower, optimized for control and real-time response.
|
Higher, optimized for multitasking and complex operations.
|
|
Clock Speed
|
Lower (<100 MHz, sometimes up to a few hundred MHz).
|
Higher (>1 GHz, multi-core with GHz-level speeds).
|
|
Instruction Set
|
Fixed, simpler instruction set.
|
More flexible, complex instruction set (CISC, RISC, hybrid).
|
|
On-Chip Memory
|
Yes: RAM, ROM/Flash integrated.
|
No program memory on-chip, relies on external memory.
|
|
I/O Interfaces
|
Multiple GPIO, UART, SPI, I2C, ADC/DAC on-chip.
|
Limited on-chip I/O, requires external controllers.
|
|
Peripheral Devices
|
Integrated (timers, counters, communication modules).
|
External (timers, controllers, GPUs, storage chips).
|
|
Power Consumption
|
Low → suitable for battery-powered devices.
|
High → requires stable power and cooling.
|
|
Size
|
Small, compact.
|
Larger, requires multiple support chips.
|
|
System Cost
|
Low (single-chip solution).
|
High (depends on multiple components).
|
|
Real-Time Capability
|
Strong: ideal for sensor input, motor control, and automotive ECUs.
|
Weak: not optimized for real-time, better at complex computing.
|
|
Operating System Support
|
Often runs bare-metal code or lightweight RTOS (FreeRTOS, Zephyr).
|
Runs full OS (Windows, Linux, Android, macOS).
|
|
Development Tools
|
Manufacturer-specific IDEs (Arduino IDE, STM32CubeIDE, MPLAB).
|
Standard toolchains and OS-based environments (GCC, LLVM, Visual Studio).
|
|
Programming Languages
|
C, C++, Python (Arduino), Assembly for hardware-level control.
|
C, C++, Java, Python, Assembly, OS-level programming.
|
|
Applications
|
IoT devices, home appliances, automotive electronics, robotics, wearables, industrial control, medical devices.
|
PCs, laptops, smartphones, servers, gaming consoles, HPC, AI, networking systems.
|
|
Examples
|
Atmel AVR (Arduino UNO), PIC, STM32, ARM Cortex-M, TI MSP430.
|
Intel Core, AMD Ryzen, ARM Cortex-A, Apple M1/M2, GPUs, DSPs, ASICs.
|
|
Performance Scalability
|
Limited, designed for small to medium tasks.
|
Very high, scales with cores, cache, and external memory.
|
|
Versatility
|
Application-specific, less flexible.
|
Highly versatile, adaptable to many computing needs.
|
|
Future Trends
|
Increasingly powerful (32-bit, wireless integration, AI accelerators).
|
Becoming more energy-efficient, expanding into edge and mobile computing.
|
Choosing Between a Microcontroller and a Microprocessor
Both microcontrollers and microprocessors can perform similar computing tasks, but they are suitable for different scenarios. The microcontroller is a highly integrated solution on a single chip, which includes memory, peripherals inside and supports low-power mode. It is more suitable for embedded systems that require energy conservation and low cost. The microprocessor, on the other hand, has stronger processing capabilities and can run operating systems such as Linux, Windows, and Android. It is more suitable for complex and multitasking applications, such as personal computers and industrial servers.
When choosing between a microcontroller and a microprocessor, the following aspects can be considered:
• Application complexity: Simple control tasks → choose MCU; requires an operating system or multitasking → choose MPU.
• Power budget: Battery-powered, low-energy → choose MCU; high-performance computing → choose MPU.
• Cost constraints: Limited budget → choose MCU; higher budget with scalability needs → choose MPU.
• Software requirements: Firmware only → choose MCU; full operating system → choose MPU.
Conclusion
Understanding the difference between a microcontroller and a microprocessor is important to anyone engaged in electronic or embedded design: microcontrollers are best suited for dedicated, real-time tasks, where cost, simplicity and energy efficiency are key, while microprocessors are more suitable for complex and general-purpose computing scenarios, where high performance, multitasking, and the support of an operating system are required.
Ultimately, the choice between a microcontroller and a microprocessor depends on our project's goals. Some systems use only one of them, while others combine the two. By carefully analyzing the requirements, engineers can leverage the advantages of microcontrollers and microprocessors to build efficient, reliable and future-oriented systems.
