VCC vs. VDD vs. VEE vs. VSS: What Are the Differences?

Electronics also provide the supply voltages to justify circuit design and troubleshooting. Along with much transistor-based circuitry, several terms go hand-in-hand with the power supply voltages, such as VCC, VDD, VEE, and VSS. All work with PCB makes one rely on all these to ensure proper circuit operation.



The important differences between VCC, VDD, VEE, and VSS, their functions in several components, and practical insights into their application in designing actual circuits will be explored. At the end of this guide, one will not only be well-equipped to understand some significant concepts but also apply the same when designing or evaluating circuits.


Understanding Power Supply Voltage


A power supply is needed for each circuit in electronics. Voltages in a power supply are used as energy sources for performing an operation or interacting with the correct components. Voltages found in circuits are typically named according to their function, source, or polarity.


For example, VCC voltage is the high supply voltage in BJT circuits, while VDD is the basic supply voltage in MOSFET-based design. The last two voltages are VEE and VSS- either negative supply or ground, respectively, depending on whether one works with BJT circuits or MOSFET-based designs.


Those voltage designations when designing or troubleshooting circuits ensure that the current flows properly and the delicate components are not damaged. Similarly, proper labeling and proper handling of the same during design or PC board manufacturing ensure the functionality and lifetime of the same PC boards.

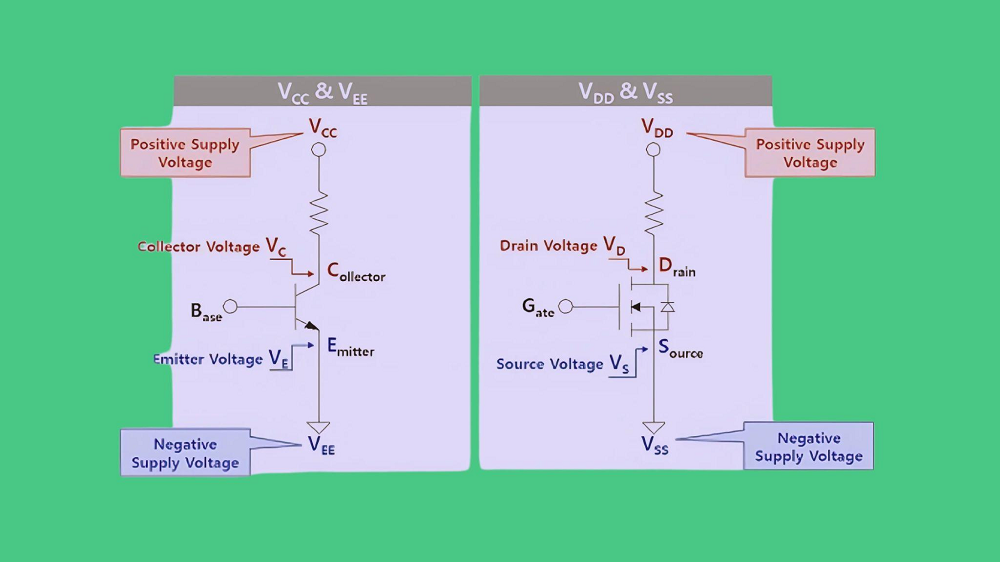

Introduction to VCC, VDD, VEE, and VSS


Now, let's see what all these words mean and how they apply to different parts and circuit designs.

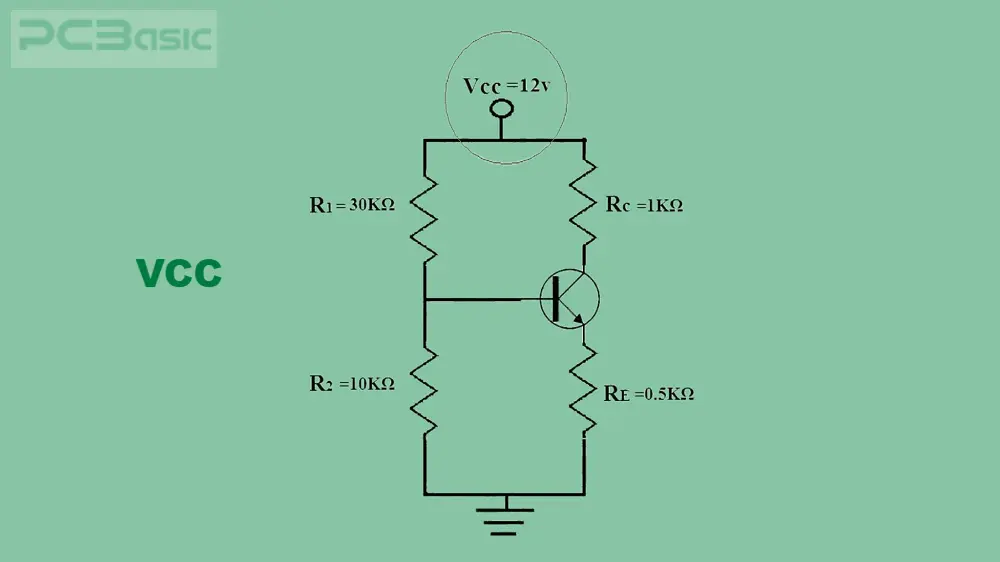

VCC Meaning



VCC's full form is "Voltage at the Collector." It refers to the notation of the positive power supply voltage in the bipolar junction transistor circuit. Often, the positive voltage supply is connected with the collector terminal of a BJT; hence, VCC enables the transistor to work.


It is not entirely the role of a VCC as a power supply. The VCC, in an actual sense, provides the necessary operating voltage for proper function of a BJT because it allows current to flow from collector to emitter when the base voltage is correctly biased. VCCs are widely used in analog circuits and microcontroller systems, just like low-power devices. For example, small sensors or actuators normally rely on VCC to provide the constant power supply required for their operations.

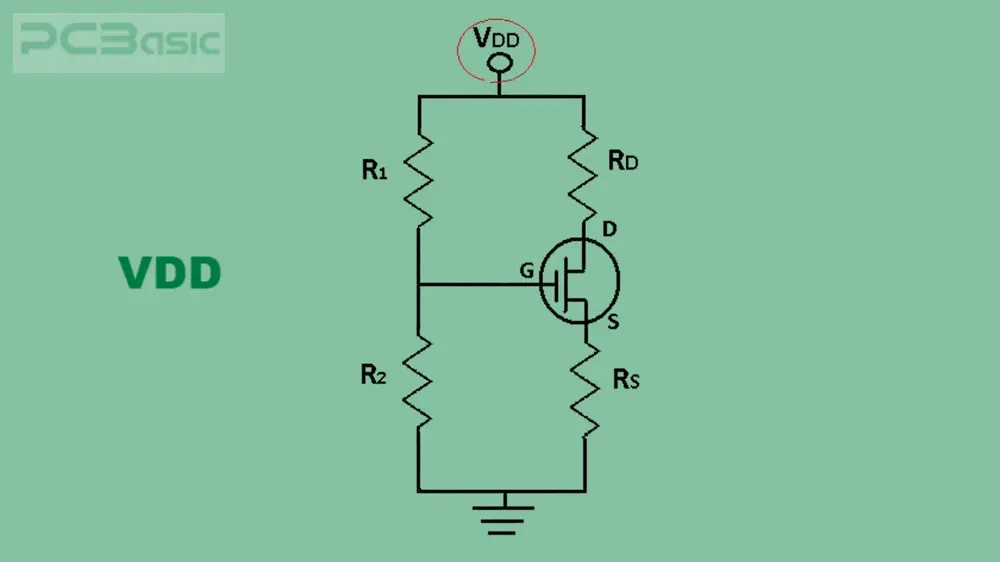

VDD Meaning




VDD stands for: "Voltage at the Drain." It is a term found in MOSFET, a short form for Metal-Oxide-Semiconductor Field-Effect Transistors. Now, in a VDD circuit, the positive supply voltages are applied to their respective circuits.


Some of the current modern applications of MOSFETs include digital electronics, especially in the application of microprocessors, memory, and logic circuits. The VDD is the primary power source for the components of MOSFETs. In a MOSFET, VDD voltage applies to both ends to establish the current flow from the drain to the source. Thus, it has control over switching time. Since MOSFETs are standard to ICs, the VDD term is very commonly used in both analog and digital systems.


VEE Meaning



The term VEE refers to the "Voltage at the Emitter." It is dominantly used in circuits with negative supply voltage. In a BJT, generally, the emitter terminal is connected with the ground or with a negative supply voltage, and VEE assists in making this much-required difference of potential between the collector and the emitter so that the flow of the current can be regulated.


Practically, VEE is crucial in amplifier circuits, where accurate voltage control is needed for the integrity and amplification of the signal. A BJT most probably would not perform according to the set parameters because there would be distortion or clipping due to the inadequate VEE voltage.


VSS Meaning



The term VSS stands for "Voltage at the Source." In MOSFET circuits, they are typically referenced to the ground or negative power supply voltage of the source terminal. In digital circuits, the VSS is often referenced as a point of reference for the circuit. As with VEE for BJTs, VSS is the common point for setting up operational conditions of a MOSFET.


At this point, the voltage VDD will be referenced, and it ensures that the current flowing through the MOSFET does so in the correct direction. Proper identification of VSS on PCBs prevents potential grounding issues and ensures correct signal levels.


Differences Between VCC, VDD, VEE, and VSS


The principal difference between VCC and VDD is that VCC usually occurs in bipolar transistor circuits, whereas VDD happens much more often in MOSFET-based circuits. The same thing applies to interpreting VEE and VSS as negative voltages or ground, but VEE is associated with BJTs, while VSS goes along with MOSFET circuits.


Term

Meaning

Application

Common Use Case

VCC

Voltage at the Common Collector

Positive supply in BJT circuits tends to drive current flow in the collector toward an emitter.

Analog circuits, micro-controllers, and signal amplifiers are used in low-power devices.

VDD

Voltage at the Drain

Positive supply voltage in MOSFET circuits enables MOSFET to conduct from drain to source.

Digital circuits, microprocessors, memory chips, and logic gates.

VEE

Voltage at the Emitter

Negative or ground voltage in the BJT circuits aids proper transistor biasing.

Analog amplifiers are used very widely with audio and signal processing.

VSS

Voltage at the Source

Ground or negative supply in MOSFET circuits is used as a reference for VDD.

Microcontrollers, digital systems, and grounds of integrated circuits.


Applications in Circuit Design

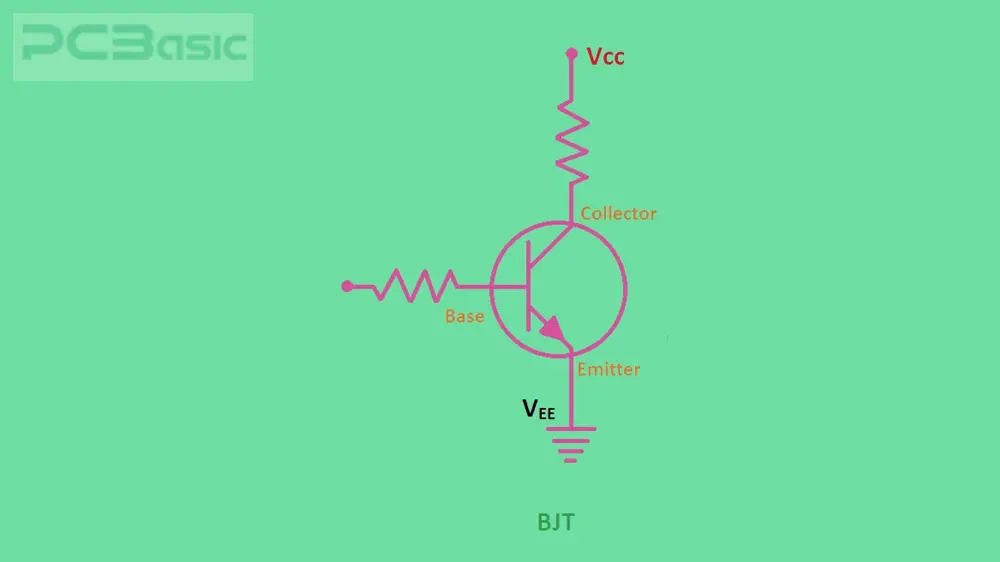

In Bipolar Junction Transistors (BJTs)


In BJT circuits, VCC and VEE basically set up the transistor's operating state. Here, the VCC is taken positive at the collector, and the VEE causes a negative voltage or ground on the emitter. Therefore, it is possible to set up an operating point or biasing using very important voltages in applications such as amplification. Thus, voltages will allow the setting up of the operating point, or biasing, which is crucial in applications such as amplification.


It would, therefore, fail to operate, not being biased with the necessary VCC and VEE. The impacts could be distortion of signal or inadequate amplification. For example, the effect of audio systems could be bad sound quality or even damage to the components.

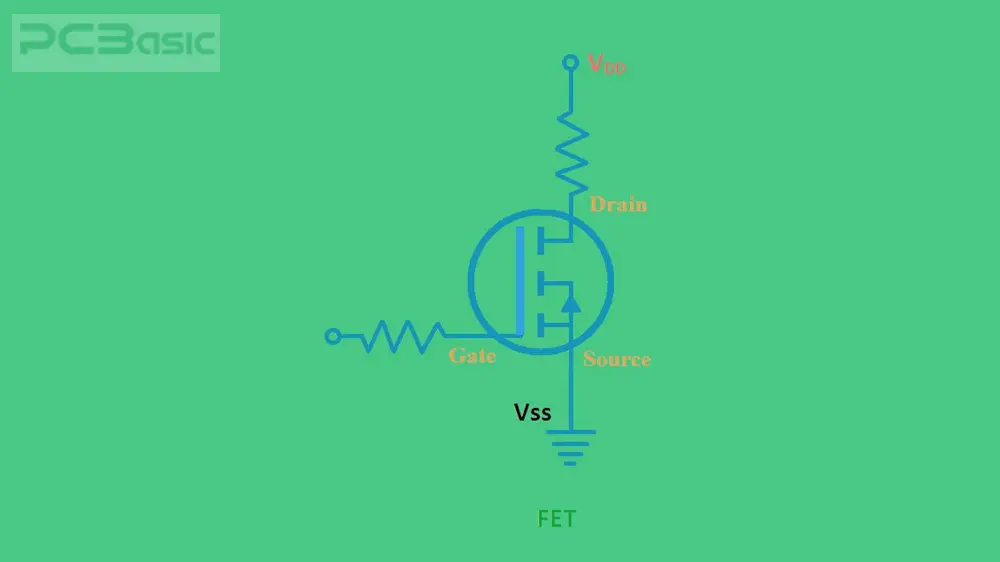

In Field-Effect Transistors (FETs)


The VDD and VSS of FET circuits are essential factors in the switching control of the transistor. In this case, VDD's voltage source is the supply voltage due to the drain, while the ground reference of VSS controls the source. The voltages in digital circuits enable the on/off conditions of MOSFET to be like a switch for devices within logic gates and more.


The application of VDD and VSS is highly critical in high-speed circuits since, here, the switching performance has to be optimum. The voltage instability caused by timing errors will degrade the performance of the digital system.


Other applications


Microcontrollers


Most often, at the heart of many embedded systems, microcontrollers rely on stable power supplies for proper operation; most often, the VCC or VDD represents the positive operating voltage used in microcontroller-based designs, though different microcontrollers might use one term or the other to describe the same thing, depending on their internal transistor architecture being either BJT or MOSFET.

In systems that are supposed to perform functions such as real-time processing, the VCC or VDD should be stable since any voltage changes may cause the system to crash or behave erratically.


Acoustic systems


VCC and VEE voltages are used mainly in audio amplification circuits so that the operational range of the transistors will be under the specified limit. Proper voltage regulation ensures no distortion and noise while the audio comes from the amplifier.


Digital and Analog Circuit Interfaces


These voltages, VDD and VEE, help maintain proper voltage levels within the circuits of a PCB when the PCB interfaces between digital and analog circuits. Adequate separation of these voltages is required if interference between different sections of the PCB is to be reduced.


Conclusion


In the design of circuitry, particularly in PCBs, one has to understand how VCC is different from VDD, VEE, and VSS. These terms denote power supply voltages in many diverse transistor-based circuits, and understanding the application may assist in selecting the appropriate voltage levels for most components.


Perhaps the names of BJTs, MOSFETs, microcontrollers, or audio systems would best be understood by voltage names. Just like PCB technology will forever change, these terms on voltage concepts will become as important to new as well as seasoned engineers.
