Patient Monitor PCB Assembly: Manufacturing and Testing for Reliable Medical Electronics

Table of Contents

1. What Is Patient Monitor PCB Assembly?

2. Why Is Patient Monitor PCBA Manufacturing Challenging?

3. SMT, Through-Hole, and Mixed Assembly for Patient Monitor PCBs

4. Patient Monitor PCB Assembly Process and Quality Control

5. How Are Patient Monitor PCB Assemblies Tested?

6. Conclusion

7. FAQs



---

Patient monitors usually need to operate for a long time in healthcare environment such as hospitals, clinics, and emergency transport, for the continuous collection and display of important physiological information. A patient monitor is not composed of a single functional circuit; it may need to process signals such as electrocardiogram (ECG), blood oxygen saturation (SpO2), non-invasive blood pressure (NIBP), body temperature, and respiration, and some also need to be responsible for display, alarm, power management, data storage, and communication functions.



This is why patient monitor PCB assembly cannot be simply understood as simple component placement. Sensitive analog signal acquisition circuits may need to work simultaneously with digital processors, switching power supply circuits, and communication interfaces. So, the assembly accuracy, soldering quality, and production consistency of the circuit board requirements are also higher.



This article will introduce the main functions of patient monitor PCBs, assembly difficulties, SMT and through-hole assembly methods, production quality control, as well as common inspection and functional testing methods for patient monitor PCBA.



What Is Patient Monitor PCB Assembly?



Patient monitor PCB assembly refers to the manufacturing and assembly process of printed circuit boards used in electronic patient monitoring devices. Depending on the product design, patient monitor PCBA can be the main control board or one of several independent functional boards, such as signal acquisition board, power supply board, display interface board, communication board or measurement module.

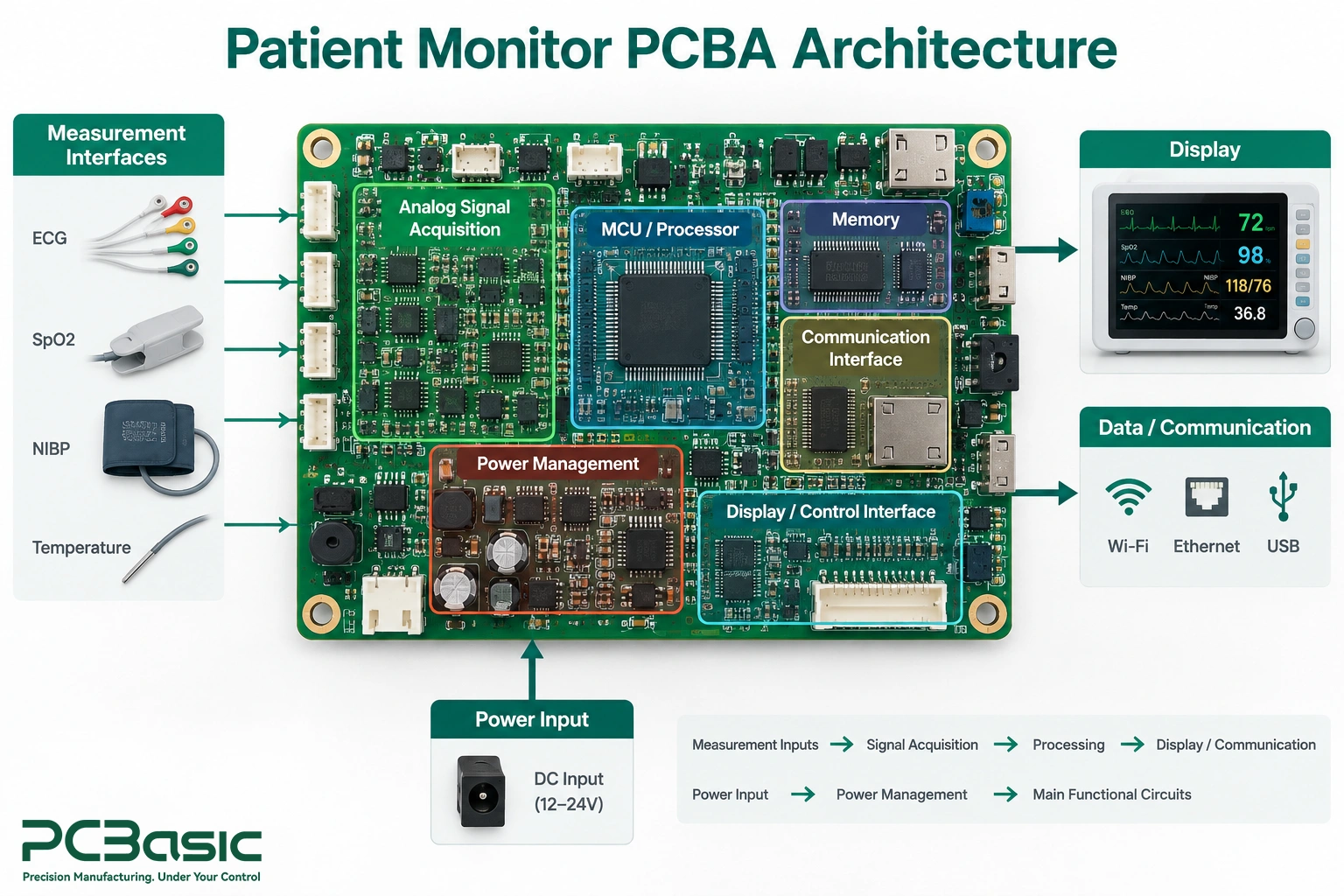

Then, in a multiparameter patient monitor, how are the hardware organized? Different functions may be distributed on the main control board, signal acquisition board, power supply board, communication board or independent measurement modules. Some bedside monitoring systems use multiple modules connected to a central mainboard, while portable monitors, in order to save space and reduce weight, usually integrate more functions into fewer PCBA.



Not all patient monitor PCBA adopt the same standard architecture. The circuit board structure depends on the specific product design. Therefore, the assembly process needs to be carried out according to the actual PCB layout, BOM, component types, interfaces and test requirements of each project.



Therefore, patient monitoring PCB assembly is more suitable to be regarded as a specialized application area in medical PCB assembly. During actual production, the manufacturing process needs to be matched with the design, function and production requirements of the monitor itself.



Why Is Patient Monitor PCBA Manufacturing Challenging?



The manufacturing of the patient monitor PCBA is challenging because multiple high requirements often coexist on the same circuit board. Sensitive analog signal paths may be adjacent to digital processors, switching power circuits, communication interfaces, and high-density fine-pitch components. For PCBA manufacturing, the key lies in accurately fulfilling the original design requirements and maintaining consistent assembly quality across different production batches.



The main challenges typically involve:

Challenge	Why It Matters in Patient Monitor PCBA
Mixed-signal circuitry	Sensitive analog signals can be affected by noise, making consistent assembly quality important.
Isolation areas	Assembly must maintain the specified component positions, creepage, clearance, and cleanliness.
High component density	Fine-pitch ICs, QFN/BGA packages, and small components increase placement and soldering difficulty.
Soldering joint reliability	Variations in printing, placement, and reflow can cause weak joints, voids, or intermittent connections.
Component traceability	Long-lead-time components and long product lifecycles make stable sourcing and lot traceability important.



The real challenge with patient monitor PCB assembly is not any one process, but the need to ensure consistent quality across multiple stages including solder paste printing, placement, reflow, inspection, material control and testing. At the same time, it is necessary to maintain the electrical and safety features of the original design.



SMT, Through-Hole, and Mixed Assembly for Patient Monitor PCBs



Most patient monitoring instrument PCBs are mainly assembled using SMT PCB assembly, as it is more suitable for high-density layout and automated production. However, some components that require stronger mechanical support or are not suitable for surface mounting still use through-hole PCB assembly.



Therefore, many patient monitor PCBs actually use both SMT and through-hole technologies simultaneously, which is called mixed technology PCB assembly. The specific method to be adopted mainly depends on the type of components, mechanical strength requirements, and the design of the PCB itself.



Assembly method	Typical application in the patient monitor PCB
SMT	Fine-pitch ICs, processors, memory devices, analog front-end components, small resistors and capacitors
Through-hole assembly	Connectors, large components, transformers, and components requiring stronger mechanical support
Mixed assembly	Contains both high-density electronic circuits and through-hole components with higher mechanical strength requirements or larger dimensions



In mixed technology PCB assembly, the SMT processes such as solder paste printing, SPI, component placement, reflow soldering and AOI are usually completed first, followed by through-hole insertion. Then, based on the circuit board design, either wave soldering, selective soldering or manual soldering can be chosen.



What this type of assembly really needs to focus on is not which process is better between SMT and through-hole technology, but whether the two processes can be smoothly connected. During the subsequent insertion and soldering processes, manufacturers need to avoid affecting the already completed SMT components, and at the same time, minimize new soldering defects.



Patient Monitor PCB Assembly Process and Quality Control



Reliable patient monitor PCB assembly cannot be achieved without stable quality control throughout the entire production process. From material inspection to soldering and inspection, every step must be carried out in accordance with the actual circuit board design and project requirements.



• Production Preparation and Material Control: Before the assembly begins, it is necessary to review the BOM, Gerber files, placement data, assembly drawings, polarity information, and other production materials. Incoming components also need to be checked and stored under the correct conditions.



• Solder Paste Printing and SPI: In SMT PCB assembly, solder paste printing is one of the earliest steps that require careful control. SPI will check the volume, height, area and position of the solder paste, helping to identify printing issues before the placement and reflow.



• Placement, Reflow and inspection: After the components are placed, the circuit board will proceed to the reflow soldering. Subsequently, AOI is used to check for missing parts, polarity errors, mounting abnormalities, and visible soldering defects. For packages with hidden solder joints such as BGA, X-Ray can be used for inspection as needed.



• Through-hole Assembly: If patient monitor PCBA also contains through-hole components, these are added after the SMT process. Depending on the circuit board design, wave soldering, selective soldering or manual soldering can be used.



• Traceability and Quality Records: For medical device PCB assembly, production records are also very important. The first-article results, material information, process records, and test data can all be used to trace back to specific material batches or production stages when necessary.



For medical PCB assembly, these control measures should not be separate inspection steps but should be integrated throughout the entire production process. ISO 13485 provides a quality management system framework for medical device manufacturing, but it does not equate to the certification of the final patient monitoring instrument products.



At PCBasic, incoming material inspection, first article verification, SPI, AOI, X-Ray inspection, process traceability and functional testing can all be configured according to the specific requirements of the medical device PCB assembly project. The actual production process can also be adjusted according to the circuit board design of the patient monitor PCBA, component types, inspection requirements and test needs.



How Are Patient Monitor PCB Assemblies Tested?



Inspection can help identify many assembly issues, but it cannot guarantee that the actual functions of the patient monitor PCBA are definitely normal. For instance, AOI can detect missing parts, misplaced or polarity errors, while X-Ray can inspect the hidden solder joints beneath BGA components. However, these inspections cannot directly determine whether the power supply, communication interfaces or measurement channels are functioning properly.



Therefore, in patient monitor PCB assembly, functional testing is also very important. The specific test contents are usually determined according to the test specifications confirmed by the customer. Common tests include:



• Power and Voltage Check: Confirm whether the circuit board can be powered on normally and check if the key voltages are within the specified range.



• Interface Testing: Check communication ports, digital and analog I/O, display interfaces, buttons and alarms, etc.



• Firmware Verification: Confirm that the firmware can be properly programmed, or that the currently loaded firmware version is correct.



• Measurement Channel Testing: For multiparameter patient monitors, input known or simulated signals to interfaces such as ECG, SpO2, NIBP, and body temperature, and then check if the response of the patient monitor PCBA meets the set requirements.



• FCT Fixture Testing: In the batch patient monitoring PCB assembly process, special FCT fixtures can be used to connect test points, power supply, and communication interfaces, enabling each circuit board to undergo testing under the same conditions, thereby enhancing the consistency and repeatability of the testing process.



A simple functional testing process can be understood as:



Known input or simulated signal → patient monitor PCBA → signal processing → output or communication result



For medical PCB assembly, there is no unified functional test applicable to all patient monitors. The testing method should be formulated based on the specific circuit board design, interfaces, and the test requirements confirmed by the customer.



It should also be noted that the functional testing during the production stage is not equivalent to the finished-product validation or clinical verification. A PCBA manufacturer can confirm the circuit board function according to the prescribed testing process, but the safety, overall performance, and regulatory compliance of the medical device still need to be verified at the complete product level.



Conclusion



The actual focus of patient monitor PCB assembly is not merely to accurately attach the components to the circuit board, but to ensure the stability of the entire manufacturing and testing process. For patient monitor PCBA, the assembly method, inspection methods, and testing plan should all be determined based on the actual product design, rather than following a fixed process.



Regardless of whether it is SMT PCB assembly, through-hole assembly, or mixed technology PCB assembly, the key is to control the production process well and ensure that each batch can be executed according to the same requirements. For medical PCB assembly, clear production records, traceability, and tests designed for actual functions are also equally important.



If you are developing a multiparameter patient monitor or other patient monitoring equipment, choosing a partner who is familiar with medical device PCB assembly, mixed assembly, and customized functional testing will be more beneficial for moving from prototype verification to stable mass production.



PCBasic can provide corresponding PCBA manufacturing and testing support based on your PCB design, BOM, assembly method, and testing requirements. If you have a patient monitor PCB project, contact PCBasic to discuss your assembly and testing needs.
