The automotive industry
is evolving fast with the updating of self-driving technology and intelligent
control systems. However, the basis of these innovations is automotive PCB assembly,
which is now seen as the backbone of modern vehicle electronics.
As a
supportive industry, PCB assembly for automotive electronics is an important
step to ensure stable signal transmission and long-term reliability in systems
such as engine control units and advanced driver assistance systems (ADAS). But
with the world becoming smarter and smarter, the demand for automotive PCB
assembly in China is rising obviously.
To
deal with these increasing demands and choose a dependable manufacturer for automotive
PCB assembly, it is necessary to get a thorough understanding of the automotive
PCB assembly.

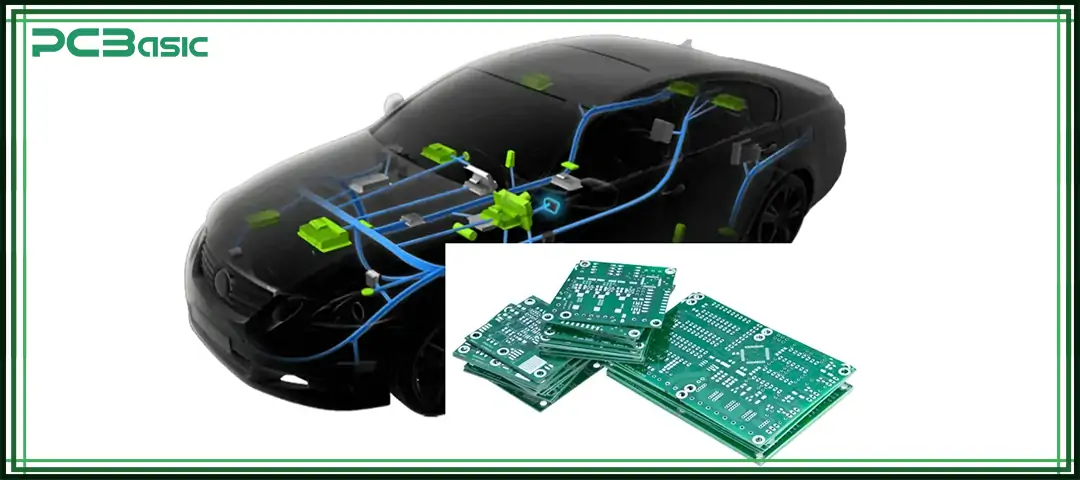

What Is Automotive PCB
Assembly?
Automotive
PCB assembly refers to the process of assembling electronic components onto a
printed circuit board.
The
process includes:
· PCB fabrication with
automotive-grade materials

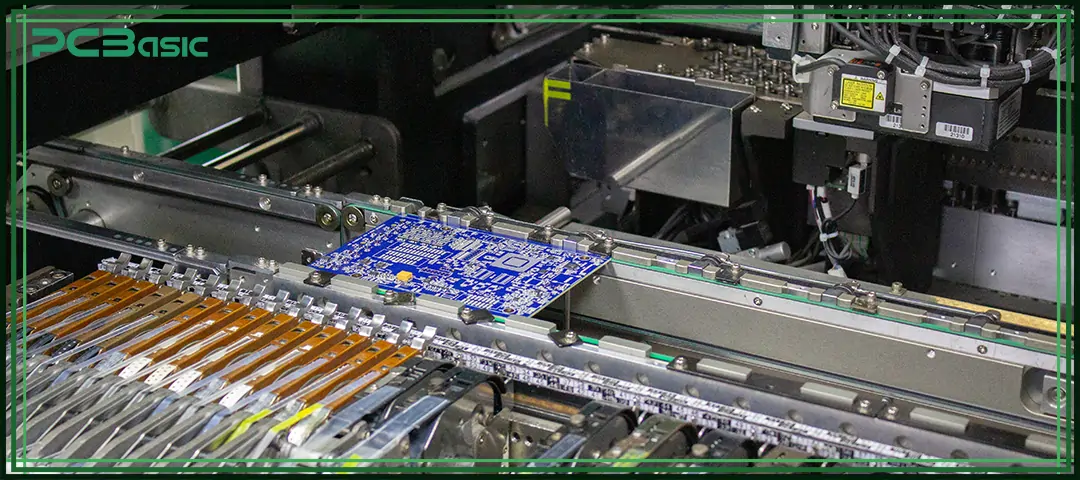

· SMT (Surface Mount
Technology) placement
· Through-hole assembly when
required
· Reflow soldering and wave
soldering
· AOI, ICT, and functional
testing
· Conformal coating or potting
for protection
During
the process, the PCB assembly for automotive will face the requirements from four
aspects: temperature resistance, vibration durability, moisture protection, and
safety compliance.
Some
manufacturers provide custom automotive PCB assembly services for vehicle
enterprises. These services may include customized automotive control system PCB
assembly for powertrain control modules or EV battery management systems. For
this kind of service, an automotive control system PCB assembly factory must
employ advanced quality control systems, traceability management, and
compliance with IATF 16949 standards.
Why Does Automotive PCB
Assembly Matter?
1. Safety-Critical
Performance
Automotive
PCB assembly is the foundation of the vehicles. It can directly impact the
safety of the braking, steering, and engine management. Therefore, there must
be no error in solder joints, impedance routing, and electrical testing during
the assembly.
2. Harsh Operating
Environments
Unlike
indoor electronics, PCB assembly for automotive electronics must withstand:
· Extreme temperatures (-40°C
to +125°C or higher)
· Continuous vibration
· Humidity and corrosion
· Electrical noise
The
final quality of the electronics relies heavily on the professionalism of the manufacturer.
This is why choosing experienced automotive PCB assembly manufacturers or
certified automotive PCB assembly suppliers is crucial.
3. Growing
Electronics Content in Vehicles
More
and more functions are needed on modern vehicles, and these functions all rely
on electronic control units (ECUs). The operation of these electronics control
units depends on reliable automotive PCB assembly.
To
control costs and maintain the needed quality, many buyers look for wholesale
automotive PCB assembly or solutions from scalable Chinese automotive PCB
assembly manufacturers.
Applications of
Automotive PCB Assembly in Automotive Systems
1. Engine &
Powertrain Control
The
engine control unit (ECU) is a module that manages fuel injection, ignition,
and emission systems. It is a typical result of automotive control system PCB
assembly.To
control cost, factories can employ cheap automotive control system PCB
assembly, but quality is still the prime factor in automotive control system PCB
assembly.
2. Advanced Driver
Assistance Systems (ADAS)
ADAS
modules require high-density boards to handle radar, LiDAR, and camera data in
real time. These boards are usually assembled through high-level automotive
electronics PCB assembly.

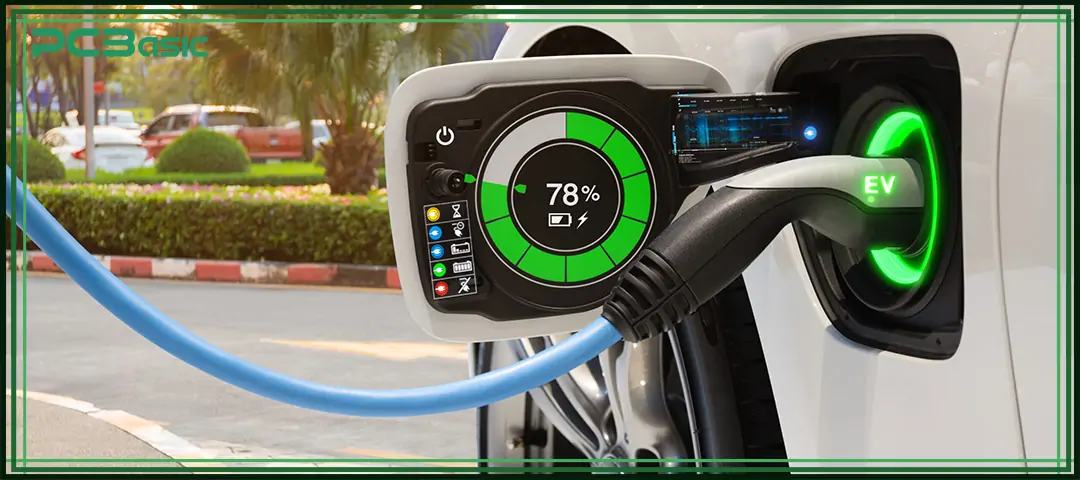

3. Electric Vehicle
(EV) Systems
The
fabrication of battery management systems (BMS) and inverters relies on robust
custom automotive PCB assembly. This kind of assembly should be good at
handling high current and thermal management.
4. Automotive
Lighting
Automotive
PCB assembly can also be applied in Modern LED headlights and interior ambient
lighting systems. It is specially called automotive LED PCB assembly. With a
high-level LED PCB assembly, the Automobile lighting system can operate
effectively.
5. Infotainment &
Connectivity
Automotive
PCB assembly is also applied in touchscreens, navigation systems, and wireless
communication modules. These are special systems, because they require compact
and multilayer automotive PCB assembly.
The
application of automotive PCB assembly is various and everywhere. To control
quality and cost, companies often work with specialized automotive PCB assembly
manufacturers. These filtered manufacturers can be highly qualified in
high-power and high-speed signal design.
About PCBasic
Time is money in your projects – and PCBasic gets it. PCBasic is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.
Key Considerations in
Automotive PCB Assembly
1. Material Selection
The
material used is a key factor in automotive PCB assembly. In automotive PCB assembly,
automotive boards often use high-Tg FR4, metal-core PCBs, or heavy copper
designs. Selecting the right materials can avoid a subsequent series of
problems.
2. Thermal Management
Heat
is a major concern in automotive PCB assembly. Especially in automotive LED PCB
assembly, proper thermal vias and heat sinks are critical.
3. Compliance &
Certification
Professional
automotive PCB assembly factories must comply with special executive standards:
· IATF 16949
· ISO 9001
· IPC-A-610 Class 2 or 3
· RoHS compliance
4. Traceability
The
traceability of the production process is also important in automotive PCB
assembly. Advanced automotive PCB assembly manufacturers usually apply full MES
traceability systems to track components, batches, and test data.
5. Supplier Selection
When choosing
automotive PCB assembly suppliers, consider:
· Experience in PCB assembly
for automotive
· Testing capabilities
· Production scale
· Engineering support
· Ability to offer wholesale
automotive PCB assembly
Challenges in
Automotive PCB Assembly
1. Extreme
Environmental Stress
The
final boards must be able to be used in an extreme environment. For example, it
should be strong enough to operate in the engine compartment with fluctuating
temperatures. To maintain stable operation, a high-quality solder joint
technique is required in the automotive PCB assembly process
2. Miniaturization
& High Density
Modern
ADAS systems require compact boards. The upgrading of technology improves the
speed and quality of assembly of compact boards, while the High-density
interconnect (HDI) technology also makes automotive PCB assembly more complex.
3. Stringent Quality
Requirements
Unlike
consumer electronics, PCB assembly for automotive electronics is stricter. It
requires a high-quality process and has a low defect tolerance.
4. Cost vs.
Reliability
Some
buyers search for cheap automotive control system PCB assembly, but balancing
cost and reliability is a constant challenge. Experienced automotive control
system PCB assembly factory teams optimize both.
The
balance between cost and reliability is a constant topic in automotive PCB assembly.
Buyers search for cheap automotive control system PCB assembly while keeping a
stable quality in the final products. It is difficult to realize both of them,
but an experienced automotive control system PCB assembly factory can help a
lot.
5. Supply Chain
Stability
Automotive
production needs a consistent long-term supply of components from the upstream
factory. Therefore, Automobile manufacturers tend to choose stable automotive PCB
assembly manufacturer partners or reliable China automotive PCB assembly
providers.
Future Development
Trends of Automotive PCB Assembly
1. Electrification
& EV Expansion
Electrification
and EV Expansion are becoming more and more common in modern society, which
stimulates demand for automotive PCB assembly, especially high-power board
assembly for battery systems.
2. Autonomous Driving
An
autonomous vehicle is a precise instrument that has complex computing
platforms. The operation of these platforms relies on high-speed multilayer PCB
assembly for automotive electronics. Therefore, automotive PCB assembly is
developing to suit the high requirements of autonomous vehicles.
3. Integration &
Modularization
Future
vehicles will use more integrated modules to meet the needs of modern society;
that's why custom automotive PCB assembly is more and more popular today. And
the assembly for automotive PCB is bound to be more individual and customized,
which is carried out to meet specific needs.
4. Smart
Manufacturing
The
application of AI operations is expanding through various industries, and
automotive PCB assembly is no exception either. Many farseeing factories are
using AI-driven inspection, automated optical inspection (AOI), and digital MES
systems in the process of automotive PCB assembly, which is a leading tendency
in the modern automobile industry.
5. Localization &
China Manufacturing
Chinese
automotive PCB assembly has an advantage in cost and advanced infrastructure,
which is why it becomes the first choice for global buyers seeking a wholesale
automotive PCB assembly supplier.
Partnering with PCBasic
for Your Automotive PCB Assembly
Selecting
the right partner is critical for automotive PCB assembly projects to be
successful. A reliable provider should offer:
· Engineering support for
custom automotive PCB assembly
· Full in-house SMT lines
· Conformal coating and testing
services
· Support for automotive
control system PCB assembly factory standards
· Capability for customized
automotive control system PCB assembly
· Experience in automotive LED PCB
assembly
If you
want to balance cost and qualification of the final product, working with
experienced automotive PCB assembly suppliers is an effective step. No matter
whether you need small-batch prototyping or large-volume wholesale automotive
PCB assembly, they can ensure a stable quality while offering you a discount.
Conclusion
As
vehicles become more intelligent and electrified, the requirements for automotive
PCB assembly are higher and higher. But still, automotive PCB assembly is the
central procedure during the production of automobiles, which is the source for
safety, reliability, and overall performance of the final products. Meanwhile,
choosing the right manufacturing partner will get twice the result with half
the effort.
Whether
sourcing from automotive PCB assembly factories, evaluating global automotive
PCB assembly manufacturers, or working with an automotive PCB assembly
supplier, a thorough understanding of industry requirements and future trends
will help you stay competitive in the fast-growing automotive market.
FAQs
1. What makes automotive
PCB assembly different from standard PCB assembly?
Compared
to standard PCB assembly, automotive PCB assembly requires higher reliability,
strict certifications, and higher resistance to extreme environments.
2. Can I find cheap
automotive control system PCB assembly services?
Yes,
you can. But when you choose cheap automotive control system PCB assembly
services, do not forget to put reliability and compliance in the first place.
3. What
certifications should automotive PCB assembly manufacturers have?
Look
for suppliers that comply with IATF 16949, ISO 9001, IPC standards, and have strong
testing capabilities.
4. Is China a good
source for automotive PCB assembly?
Yes, many
companies choose Chinese automotive PCB assembly due to its low cost, advanced
manufacturing infrastructure, and strong engineering support.
5. What is automotive
LED PCB assembly used for?
Automotive
LED PCB assembly is common in headlights, taillights, dashboard displays, and
interior lighting systems.
