PCB assembly consists of multiple stages and involves dozens of variables such as materials, processes, production capacity, and quality. If you lack a clear understanding and fail to grasp the underlying basic logic, the quotation for PCBA will seem complicated and hard to understand.

The purpose of this article is to help you establish a clear thinking framework, enabling you to interpret PCBA quotations more calmly. Now, let's get straight to the main text.

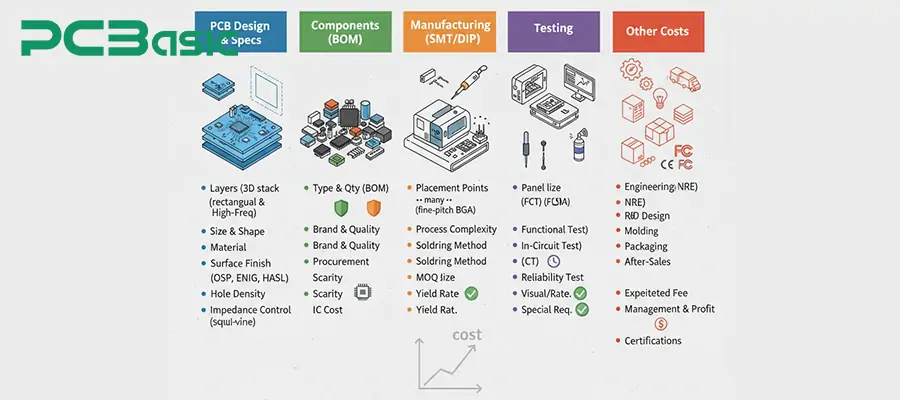

Cost Factors Affecting PCB Assembly Pricing

Organizing the factors that affect costs by category can help us better understand the quotation structure when evaluating the PCB assembly price. Below, we will conduct an analysis of the PCB assembly price from the following main cost categories:

Materials

Process

Order Volume

Quality and Testing

Logistics and Value-added Services

Market and External Environment

Each of these categories contains multiple key variables that directly affect the final PCB assembly cost.

Material-Related Cost Factors

Material costs are the most intuitive and have the most significant impact on the overall PCB assembly cost among all production-related expenditures. Each PCBA starts from PCB manufacturing, component procurement, and supporting materials. Analyzing from material-related factors, the main ones are:

1. PCB substrate materials

Before entering the assembly process, the manufacturing cost of the bare board has already been determined as part of the PCB assembly cost. The main parameters that affect this cost include:

Number of layers (2 layers, 4 layers, 6 layers, HDI stack-ups, etc.)

Board thickness (1.0mm, 1.6mm, 2.0mm, etc.)

Copper thickness (1oz, 2oz, 3oz)

Substrate type (FR4, high-frequency board Rogers, HDI, flexible board)

Surface treatment process (HASL, ENIG, silver plating, OSP)

These structures and processes directly determine the manufacturing cost of PCBs and are part of the PCB assembly price.

2. Electronic components

Components typically account for 60% to 80% of the PCB assembly cost of an entire PCBA, and the influencing factors include:

Supply status of components and global market supply and demand

Price fluctuations and delivery time changes

Package size and type (0402, 0603, BGA, LGA, etc.)

High-value chips (MCU, CPU, FPGA, etc. active devices)

Brand preference

Small passive components have a greater impact on the assembly efficiency, while complex ICs, digital devices and power management chips account for the majority of the material costs.

3. Component packaging method and tape preparation

The packaging form of the components will also affect the final cost of PCB assembly:

The reel packaging method has the highest efficiency and is suitable for automatic assembly;

Cut tape, tube or tray packaging requires additional preparation time and manpower;

Loose parts must be placed manually, which will significantly increase the cost of PCB assembly.

4. Solder Paste and Chemical Materials

Lead-free solder paste has a higher cost than leaded solder paste;

Nitrogen reflow soldering will increase material and operation costs;

High-quality solder paste is crucial for QFN, BGA and other fine-pitch devices.

Although this portion of the cost is not significant, it has a significant impact on the soldering quality and long-term reliability. Therefore, it remains an important cost component that cannot be ignored.

Process-Related Cost Factors

The manufacturing process is one of the key factors influencing the cost of PCB assembly throughout the entire assembly process.

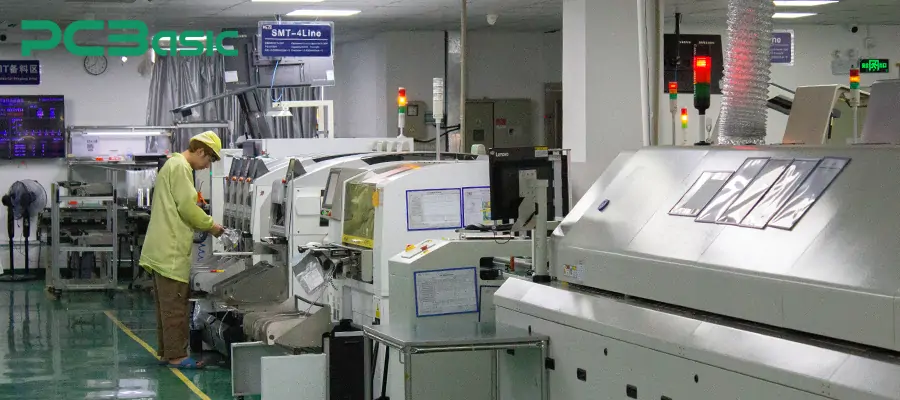

1. Complexity of SMT Soldering

The difficulty of SMT assembly is one of the main factors determining the price of PCB assembly. The price usually depends on the following aspects:

Component quantity

Total points of SMT assembly

Whether it includes fine-pitch ICs

Whether it includes BGA, QFN, CSP and other packages

Whether double-sided soldering is required

Circuits with BGA, dense pads or high-density wiring usually also require:

X-Ray inspection of solder joints

Reduce the mounting speed to ensure accuracy

Have more experienced engineers carry out program optimization and first-piece verification

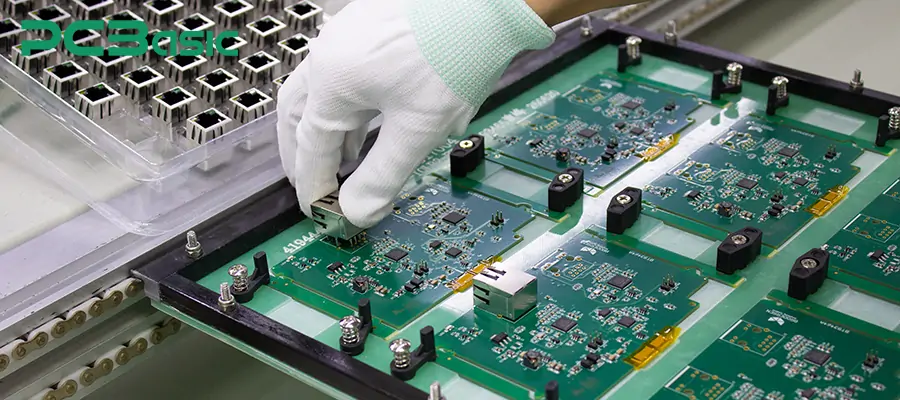

2. THT Process

Through-hole soldering is a manual or semi-automatic process, which also affects the final cost of PCB assembly. The main cost factors include:

Plugin component types (connectors, relays, transformers, etc.)

Number of pins

Whether to use wave soldering or selective wave soldering

Whether manual re-soldering is required

For high current and high power boards, thicker solder joints and longer soldering times are usually required, which will consequently lead to an increase in the final PCB assembly cost.

3. Reflow soldering requirements

Different reflow temperature curves also affect the PCB assembly price:

Standard reflow soldering → Lower cost

Nitrogen gas reflow soldering → Higher cost, mostly used for ENIG, fine-pitch ICs or high-reliability products

The nitrogen environment can enhance wetting and improve the quality of solder joints, but it will increase the corresponding production costs.

4. Secondary Processes

Any operation that deviates from the conventional SMT/THT process will increase the price of PCB assembly, including:

Wiring harness soldering

Shield cover installation

Conformal coating

Encapsulation or packaging treatment

Jumper connectors

Heat sink or heat-conductive pad installation

Each additional process requires separate billing.

5. Engineering Preparation Costs (NRE Costs)

For trial production or small batch orders, engineering preparation costs account for a significant portion of the prototype PCB assembly price, including:

DFM Manufacturability Audit

Gerber File Processing and Conversion

Solder Paste Programming (Pick-and-Place) Writing

Steel Net Manufacturing

First Article Inspection (FAI)

These costs are considered fixed expenses and will not decrease with changes in the order volume. Therefore, the unit price for small batches is usually higher than the PCB assembly cost during the mass production stage.

Order Volume–Related Cost Factors

The quantity of orders has a very significant impact on the cost of PCB assembly. Especially when comparing prototype prototyping with mass production, the difference in cost structure becomes even more prominent.

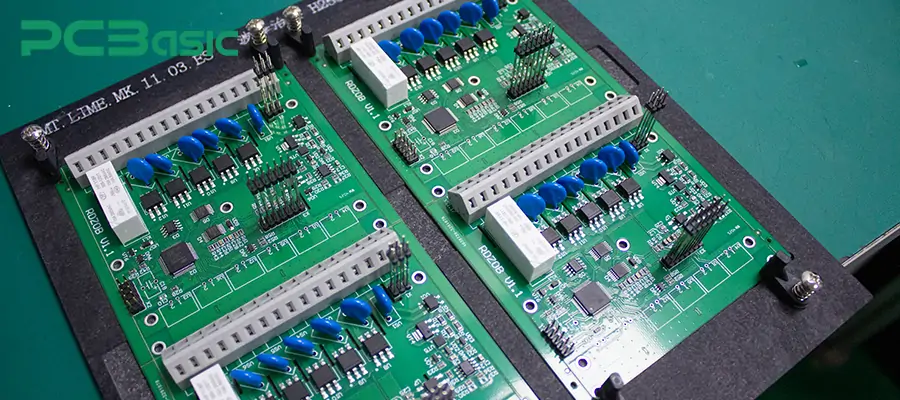

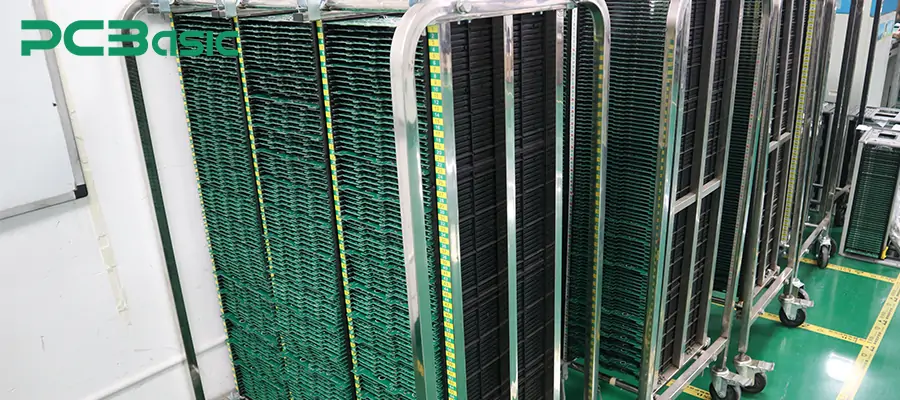

1. Prototype production and mass production

Small batch or prototype orders usually have the highest PCB assembly price per unit. The main reasons for this include:

Engineering preparation costs (NRE) should be allocated to fewer PCBs.

The time for loading and debugging the machines is the same whether it's 5 pieces or 5,000 pieces.

The procurement of components and materials cannot enjoy bulk discounts.

The proportion of labor cost allocation is higher.

2. Bulk Discounts

As the number of orders increases, multiple cost items will decrease accordingly, including:

Unit price of components (more advantageous when purchasing in large quantities)

Cost allocation of SMT procedures on the board

Amortization of stencil costs

Reduction in overall production overhead

3. Turnaround Time

The delivery speed also directly affects the cost of PCB assembly. Rush production requires the allocation of priority resources, such as:

24-48 hours rapid delivery

Priority production scheduling period

Overtime labor cost

Component rapid procurement cost

For urgent projects, the price of PCB assembly tends to increase significantly, especially when immediate production needs to be arranged during the prototype stage.

Quality & Testing-Related Cost Factors

Quality inspection is the key to ensuring the reliability of electronic products. Quality inspection also requires a fee. Common examples include:

1. AOI

Most SMT orders will include basic AOI (Automatic Optical Inspection), but the following situations will increase the cost of AOI:

High-density wiring

BGA area

Ultra-small passive components

Higher density boards require more AOI inspection time, increasing cost. This is especially obvious on high-density boards.

2. X-Ray Inspection

The following packages must undergo X-Ray testing:

BGA

QFN

Bottom Pad Device (BTC)

Although X-ray will increase costs, it is crucial for the quality of solder joints.

3. ICT

ICT usually requires:

Customized test fixtures

Develop test programs

The cost of fixtures usually ranges from several hundred to several thousand dollars. Therefore, typically ICT will significantly increase the cost of prototypes or mass production.

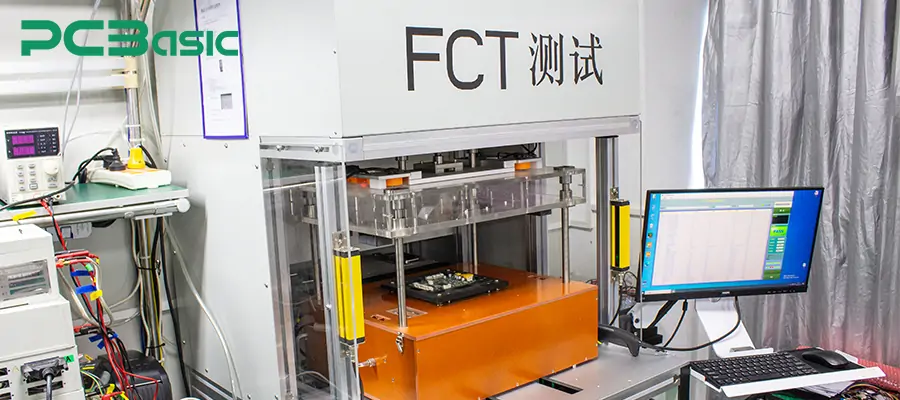

4. Functional Testing (FCT)

FCT is customized according to customer requirements and may include:

Firmware burning

USB / HDMI / Wi-Fi / BLE function testing

Sensor calibration

Power-on testing

The more complex the test is, the greater the increase in cost will be.

5. Reliability and Environmental Testing

More rigorous long-term reliability tests will significantly increase the cost of PCB assembly. Common tests include:

Temperature cycling

Vibration test Aging test

Logistics & Value-Added Service Cost Factors

Logistics and value-added services also have an impact on the final PCB assembly cost.

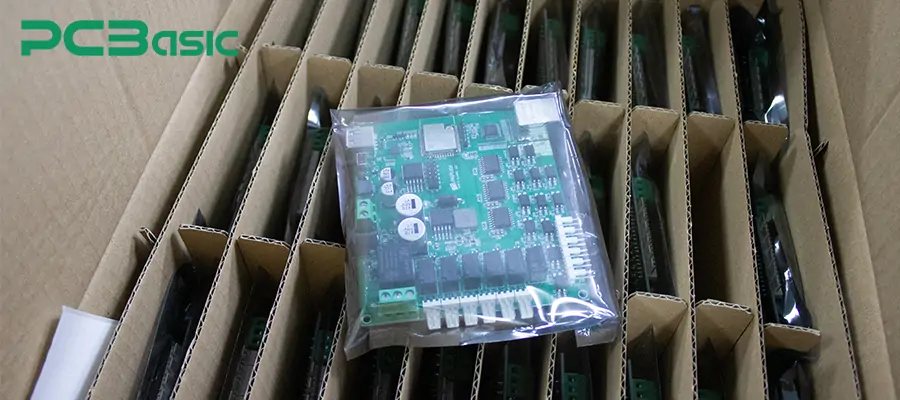

1. Packaging Requirements

The packaging method of the finished PCBA will directly affect the PCB assembly price. Common packaging methods include:

Anti-static packaging

Vacuum packaging

Moisture-proof bag (MBB)

Multi-layer corrugated box

Customized labels, QR codes or customer-specific identification

The more advanced the packaging is, the better the protection it provides, but the cost will also increase accordingly.

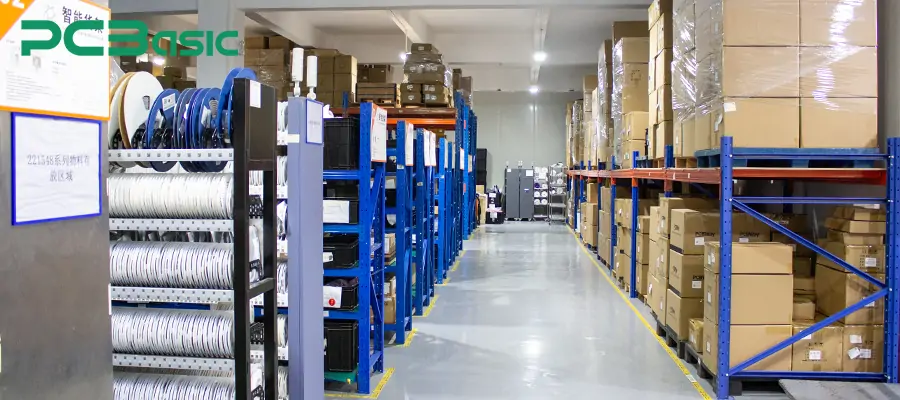

2. Warehousing and Inventory Management

If the customer requires additional logistics arrangements, additional charges will usually be incurred, such as:

Safety stock management

Batch and regular delivery

Long-term storage or inventory maintenance

All these services require additional manpower, space and coordination, which will lead to an increase in the overall PCB assembly cost.

3. Component Procurement Costs

In the global supply chain, component procurement also affects the cost of assembly. The procurement costs may also include:

Supplier communication and management

Delivery schedule coordination

Component authenticity verification

Incoming material inspection (IQC)

Market & External Cost Factors

The external market environment also significantly affects the price of PCB assembly. These factors are beyond the control of manufacturers, so some PCB assembly price calculators often display price ranges rather than fixed values.

1. For instance, there is a shortage of semiconductors, economic inflation, geopolitical risks, etc. These events will cause significant fluctuations in component prices, thereby affecting the final quotation for PCB assembly.

2. Regional labor cost differences. Different labor structures will result in different production costs, leading to significant variations in the final PCB assembly price across different regions.

3. Industry-specific requirements. Some industries have extremely high requirements for the manufacturing process, for example:

Medical Electronics Industrial control

Automotive electronics

Aerospace and military industry

These industries usually require:

Highly reliable components

High precision soldering and assembly

A complete traceability system throughout the process

Comprehensive and strict quality documentation

A Summary Table

Get an Instant PCBA Quote From PCBasic!

PCBasic is a professional manufacturer of PCB and PCBA. It is renowned for its high reliability production standards, comprehensive SMT/THT processes, and digital factory management system. Relying on multiple fully automated SMT production lines, AOI, X-Ray, ICT, FCT and other inspection equipment, as well as strict quality management procedures, PCBasic provides stable manufacturing and engineering support to customers in the fields of consumer electronics, industrial control, automotive electronics, Internet of Things, medical equipment, etc.

With years of engineering experience and efficient supply chain management, PCBasic is capable of providing both rapid delivery times and stable quality, as well as highly competitive cost solutions, simultaneously during the prototype and mass production stages.

Get real-time PCBA quotations from PCBasic

To enable customers to complete the budget assessment and order preparation more quickly, PCBasic offers a transparent and convenient PCB assembly price calculator that can generate quotations in real time.

You only need to upload the Gerber file, BOM and coordinate file, and you can immediately view the prices.

In addition, PCBasic also offers:

Complete PCB assembly price list

Competitive prototype PCB assembly price

Full range of component purchasing and material management

Highly reliable SMT/THT assembly

Full process testing including AOI, X-Ray, ICT, FCT, etc.

Global logistics and transportation services

Whether you need to produce 5 prototype boards or 50,000 mass-produced products, PCBasic can offer fast, accurate and cost-effective PCBA services.

Conclusion

PCB assembly is a complex manufacturing activity influenced by materials, processes, supply chain, testing, logistics and market environment. Its cost calculation is also very complex. From material selection to logistics and external market environment, every variable will affect the final PCB assembly price.

PCBasic is a reliable PCB and PCBA manufacturer that can provide customers with fast, transparent and stable PCBA delivery solutions. Whether it is the cost of a small-scale prototype PCB assembly or the overall cost control for large-scale mass production, PCBasic can offer professional support. The price is controllable, stable and transparent.
