UAV PCB Assembly Service: Manufacturing and Testing for Drone Electronics

Table of Contents

1. Which UAV Boards Need PCB Assembly Services?

2. Why is UAV PCBA Challenging?

3. How a Turnkey UAV PCB Assembly Service Works

4. What Inspection and Testing Should UAV PCBAs Receive?

5. How to Choose a UAV PCB Assembly Supplier and Request a Quote

6. Conclusion

7. FAQs

So basically, this article will tell how UAV PCB assembly services work and the challenges they face. It also explains the steps from the time an order is placed to the time a component is inspected and tested. It covers a UAV PCB assembly supplier’s perspective.

This is for people with an interest in how drone electronics are manufactured. Each chapter is divided into a series of small steps and examples. After reading this, you will know how to identify a good UAV PCB assembly service, the challenges they face, and how to request a quote from them.

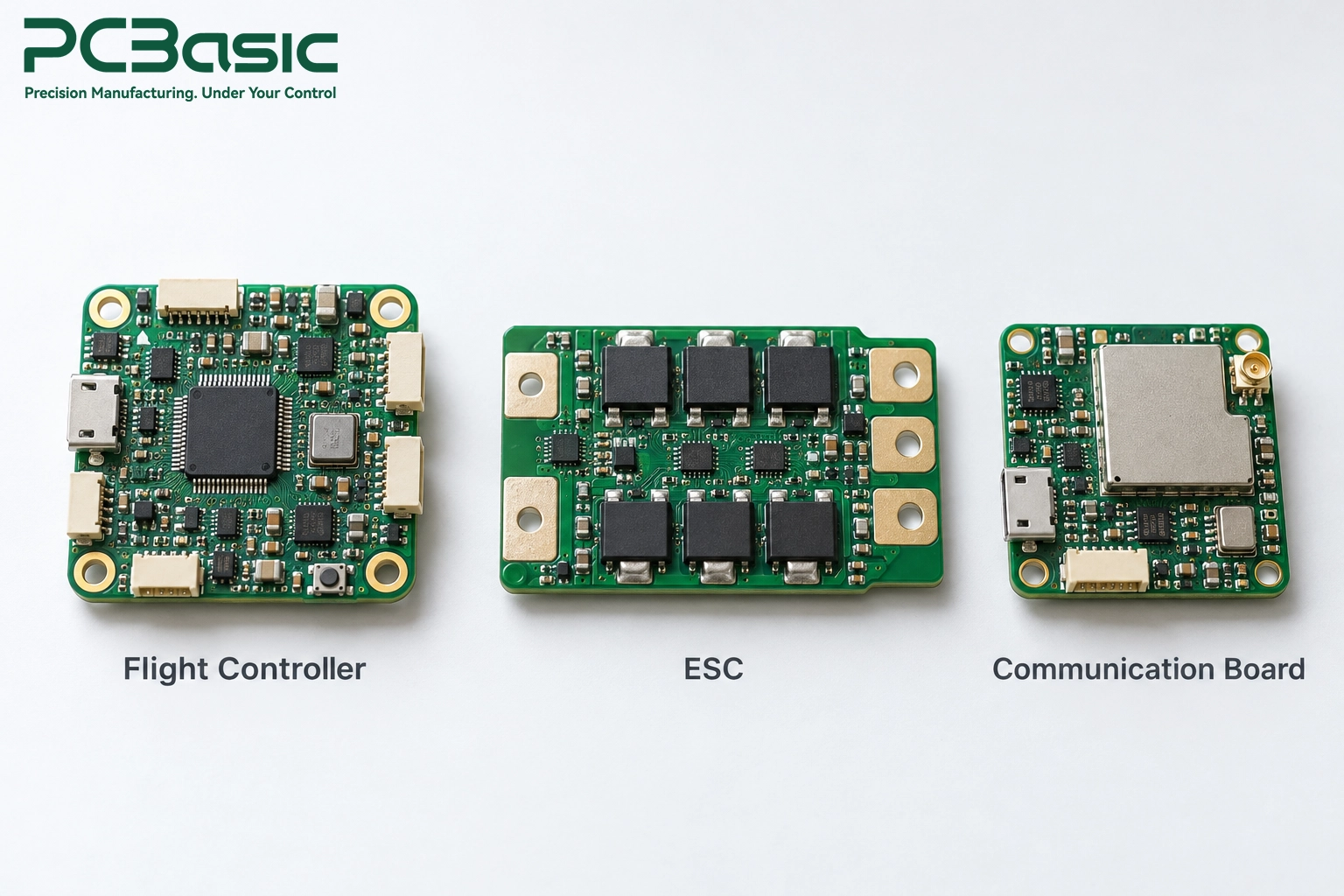

Which UAV Boards Need PCB Assembly Services?

Most drones use many different boards. Each board has a different function and purpose. That means each board has its own assembly plan. Drone PCB assembly services assemble all of them, from small control boards to large power distribution boards. The wrong assembly plan can hurt the performance of the drone; that is why the first step is figuring out which boards are in the drone being assembled.

A good UAV PCB assembly service is usually able to make boards in these three categories.

Flight Controllers and Navigation Boards

The flight controller is the brain of the drone. It is a board that integrates a processor and thus needs special care during PCB assembly. The same board may include a gyro, accelerometer, and/or barometer.

Navigation boards integrate GPS and/or compass modules. These are small and sensitive components. Poor soldering may affect sensor readings, and bad readings may affect the drone's flight.

ESCs and Power Distribution Boards

An electronic speed controller (ESC) drives a motor and usually integrates a power transistor. The power distribution board in turn distributes power from the battery to other parts of the drone.

Thick copper may be used for these boards, and large pads require careful soldering control. However, strong solder joints and good heat dispersion are required for these boards. Power board assembly requires attention to solder volume and heat, as well as tiny parts.

Communication, Video and Payload Electronics

Radio and video transmitters and other modules have their own dedicated PCBs. Payload PCBs may include a thermal sensor, gimbal drivers, and/or data loggers. Some of these modules use RF components, and they typically include connectors. The assembly team must keep the area surrounding antennas clear.

No single strategy works for all drone boards. A good UAV PCBA partner reviews each board type on its own.

Why is UAV PCBA Challenging?

The three main issues that arise in UAV PCBA projects are: board miniaturization, component crowding, and component fragility.

Compact Layouts and Fine-Pitch Components

There is a trend to save space, weight, and cost by using more parts and dense layouts in PCBAs. Components used include fine-pitch BGAs and QFNs as well as passives. Failures at fine-pitch locations can be catastrophic, e.g., a short circuit.

There is another challenge: you have to control the thickness and weight of a circuit board. For example, designers use thinner and more flexible boards, which can require additional support and fixtures. What will be the results? A board will bend too much or be damaged during handling.

PCBasic is capable of assembling small components, including BGA and QFN. It creates a process for each board based on a review of design files. During the process review, engineers check pad shapes and stencil designs. The process and review involve more than any one individual machine.

Power Devices and Uneven Thermal Mass

Sometimes the same PCB can incorporate a large power device and a small sensor. Large and small components heat differently during reflow. Differences in thermal mass can also lead to uneven cooling. This can cause uneven wetting and result in weak joints and tombstoning.

There is another important point to remember: if large pads are connected to extensive copper areas, they may heat more slowly, making proper wetting more difficult. The team can adjust the reflow profile for a design. For example, they can make a profile adjustment for the board.

Sensors, RF Connections, and Outdoor Exposures

Sensors are susceptible to heat and stress and can bend or break, resulting in altered output. RF connections are susceptible to weakened signals from poor joints and/or connector fit.

Drones also fly outside. They are exposed to vibration, dust, moisture, and changes in temperature. Some protection from the elements can be gained from a conformal coating. As mentioned before, conformal coating is not the answer to every design defect and can add stress by retaining heat.

Improving design and the use of good joints and testing also help. Conformal coating can be used if needed and should be called for in the design.

How a Turnkey UAV PCB Assembly Service Works

When a turnkey UAV PCB assembly service is used, the customer is provided a single source for several services. The customer supplies the files, and the service handles PCB fabrication, parts sourcing, assembly, and testing.

PCB assembly prototyping is a standard process for UAV PCB assembly services. However, they do this on a smaller scale and with more customer feedback.

Review the Manufacturing Files and BOM

Yet, manufacturing has not started, and a professional team reviews the design so they can catch any issues before manufacturing starts. If discrepancies exist, this can indicate design errors such as pads spaced too close together.

The customer answers questions before you start making the boards. It is cheaper to modify a file than a constructed board.

Parts Sourcing

The teams then proceed to purchase the materials. Drone boards usually require some hard-to-find chips. Sometimes a certain component may not be available for purchase or may have a long lead time. In that case, suppliers offer substitutes and ask the customer for permission to replace the part, ensuring the purchased materials match the approved design.

Controlled substitutions can also help future builds because it is easier to match materials to the records than to identify parts on their own.

Assemble and Release the First Build

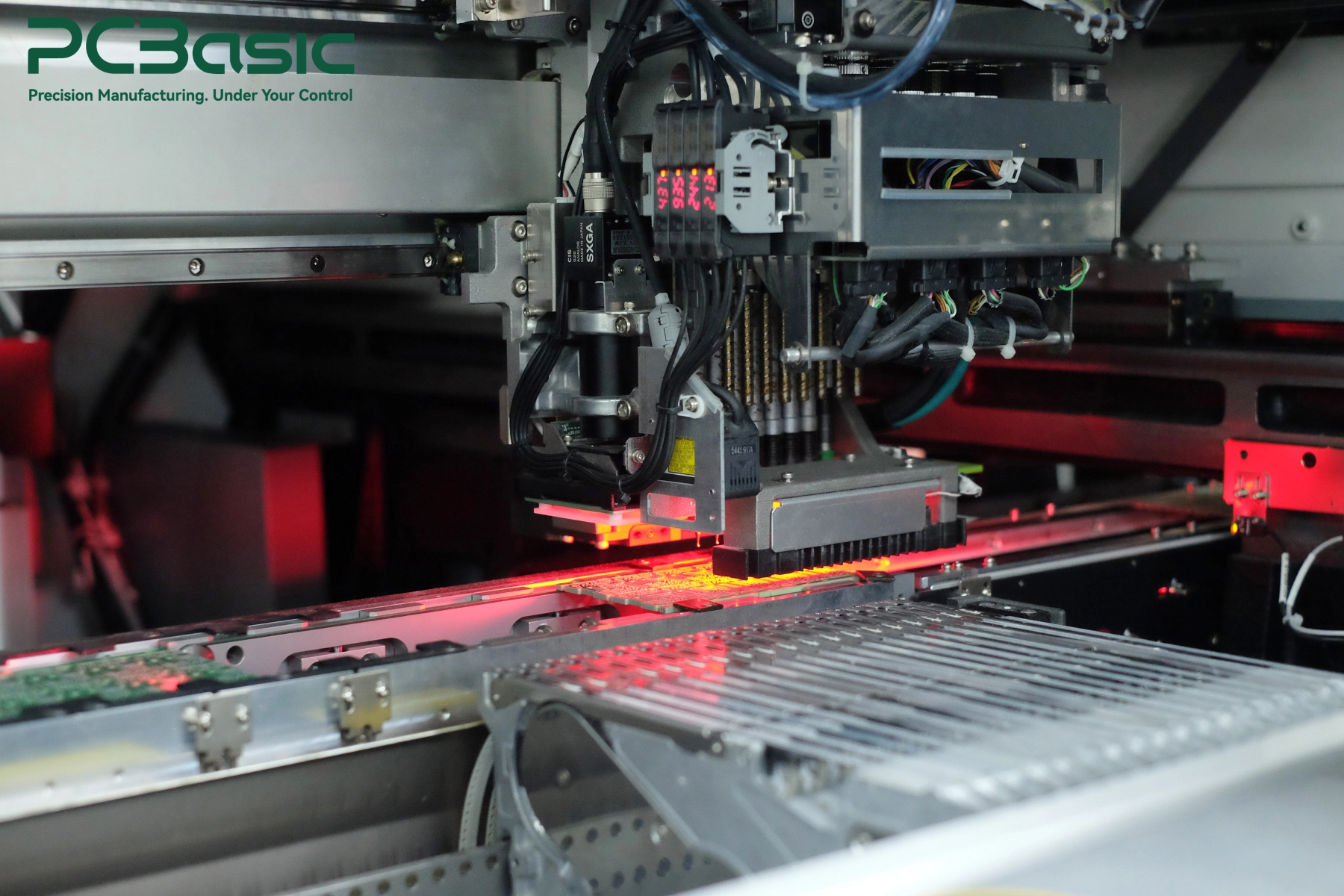

PCBasic gives you full-fledged solutions for PCB fabrication, part sourcing, SMT and through hole assembly, and testing. For the first build, the team fabricates a limited quantity of boards. Then, it inspects and tests the boards and compares the results to the files. The customer reviews the first article before the full run is produced, if required.

The first article that passes becomes a reference. Later builds are compared against it and the approved manufacturing requirements.

The MES system maintains a record of which parts, machines, and processes were used to fabricate each board. If a problem occurs in the field, the records help identify which batch of boards to check.

What Inspection and Testing Should UAV PCBAs Receive?

Testing UAV PCBAs depends on the board, as well as the customer’s requirements. There is no one test to find all faults. Generally, a mix of inspections and tests is used. The choice is based on how the board is made, as well as the quantity and risk associated with each method.

SPI, AOI, and X-ray Inspection

Inspections at various stages of PCBA production can help detect errors. SPI is performed on printed circuit boards after solder paste has been printed. AOI is performed after reflow and checks for solder bridges and missing or incorrect components. Because inspection methods have limits, a combination of methods is usually used.

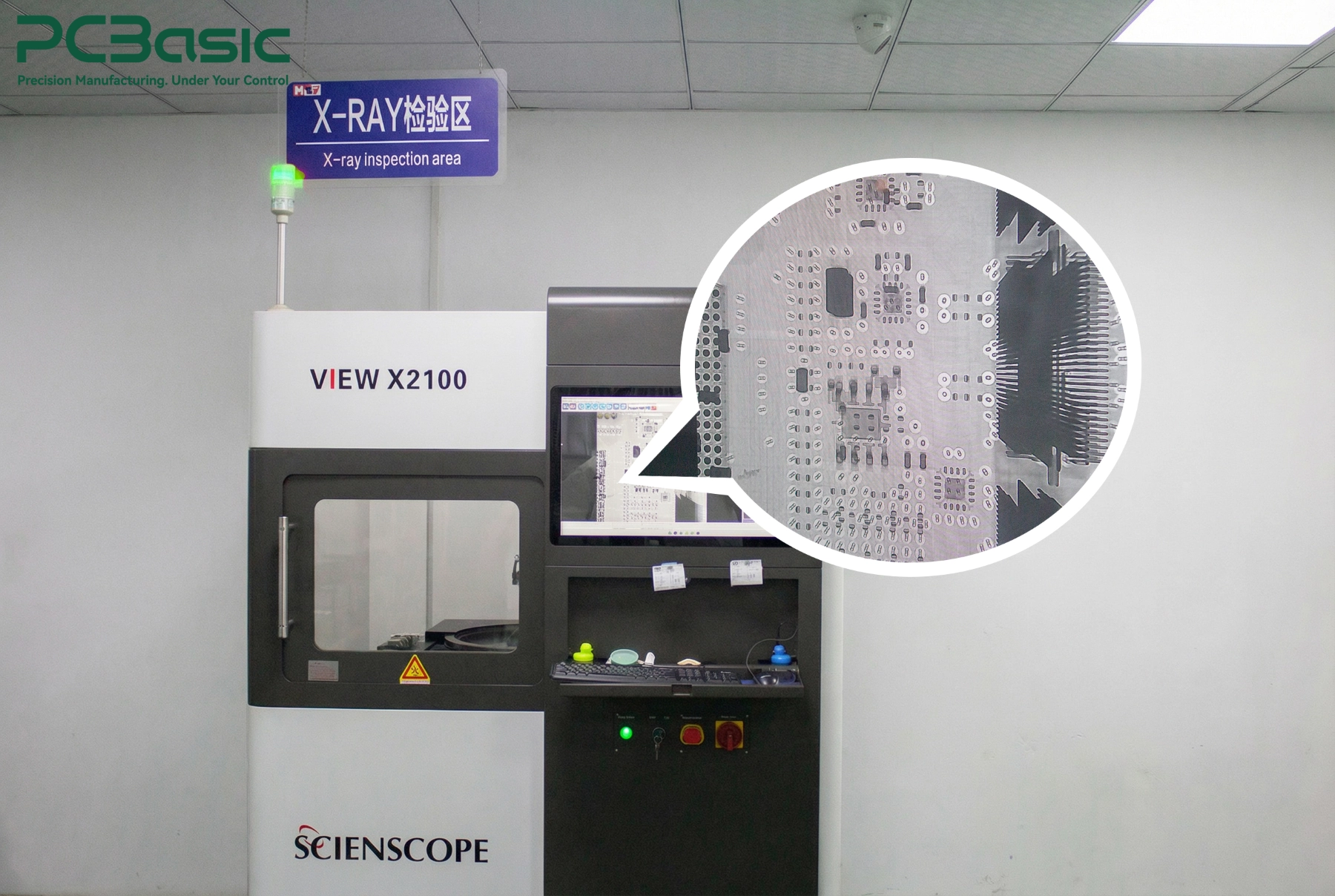

X-ray inspection can be used to examine solder joints under packages to help identify short circuits. Not every board needs an X-ray inspection. A good candidate for X-ray inspection is a board with hidden joints.

Electrical and Board Specific Functional Testing

Electrical tests can check for opens or shorts. Functional tests can be used to check that a particular board function is within the specified limits. The customer and supplier can agree on more complex functional tests before producing the PCBA.

Reliability Validation and Production Test Records

Some drone boards require more checks such as burn-in, thermal cycling, and vibration tests. They are used on boards according to application-specific requirements. Often, not all of them are required, so the customer and supplier should agree on the tests based on the assessed risk.

Production test records are important as well. The supplier retains records for each lot. When correlated with traceability data, the records indicate which boards passed, which failed, and the recorded failure details. This is critical for first article inspections and quality assurance.

How to Choose a UAV PCB Assembly Supplier and Request a Quote

When looking to select a UAV PCB assembly supplier, it helps to have evaluation criteria. Begin by defining what your boards need. Then compare each potential supplier to those criteria. A drone PCB assembly manufacturer should be able to explain its process to you in a simple manner.

Relevant Capabilities and Test Coverage

Look at what the supplier can build and how it checks its work. Consider the following.

• What is the smallest component and pitch the line can place?

• Can they do BGA and QFN placements, and do they use X-ray?

• Can they do mixed SMT and TH assembly?

• Can they source parts, and do they control part substitutions?

• What tests do they perform, and do they charge extra for others?

• Do they keep test and production traceability records?

A very important thing is to question their previous experience in making such boards, such as whether they have made similar boards for drones. Also, note how they address more complicated engineering questions. Quick, thorough answers at the quote stage usually mean the build will be done the same way.

Complete your RFQ

A complete RFQ allows the supplier to give a precise quote with fewer questions. Be sure to include the following.

1. Fabrication files (Gerbers)

3. Pick and place file

4. Assembly drawing

5. Desired quantity and lead time

6. Test requirements and fixtures

Missing information leads to delays and additional questions. A complete RFQ leads to the quickest response.

Conclusion

A UAV PCB assembly service goes beyond soldering parts only. For instance, it includes comprehensive file review, control of parts, assembly, inspection, and testing. Each step reduces the risk of a flight fault. UAV boards are usually small, dense, and exposed to significant stress, so the service requires extra care.

To optimize resources, ask clear questions, compare test coverage, and send a complete RFQ to start. Contact PCBasic with your Gerber files, BOM, and test requirements to discuss your UAV PCB assembly project.

FAQs

Q1: What is a UAV PCB Assembly Service?

This service builds, tests, and assembles the printed circuit boards (PCBs) used in drones. This service can provide procurement, SMT and through hole assembly, inspection, and functional testing.

Q2: Can I order a prototype PCB assembly service before a production order?

Yes. A prototype assembly build can be done to prove design and fit, and to test samples. Many clients use a first article to approve the build.

Q3: Is X-ray inspection necessary for all drone boards?

Not necessarily. X-ray helps with boards that have hidden joints, for example, BGA or QFN packages. A basic board may only need SPI and AOI for process inspection.

Q4: What documents are needed to request a quote?

Send Gerber files, a BOM, a pick and place file, and an assembly drawing. Mention quantity, lead time, and testing requirements.

Q5: What is the importance of UAV PCBA testing?

Drones undergo vibration and heat. A fault in flight may cause loss of the aircraft. Many defects are identified during testing to avoid failure in flight.

Q6: What differentiates a drone PCB assembly manufacturer from a general assembler?

A general assembler has capability to make many board types. For instance, a drone PCB assembly manufacturer knows the weight, vibration, and size limits of drone electronics, and plans the build around them.
