Home > Pcbasic FAQ > PCB Assembly FAQ > Components question

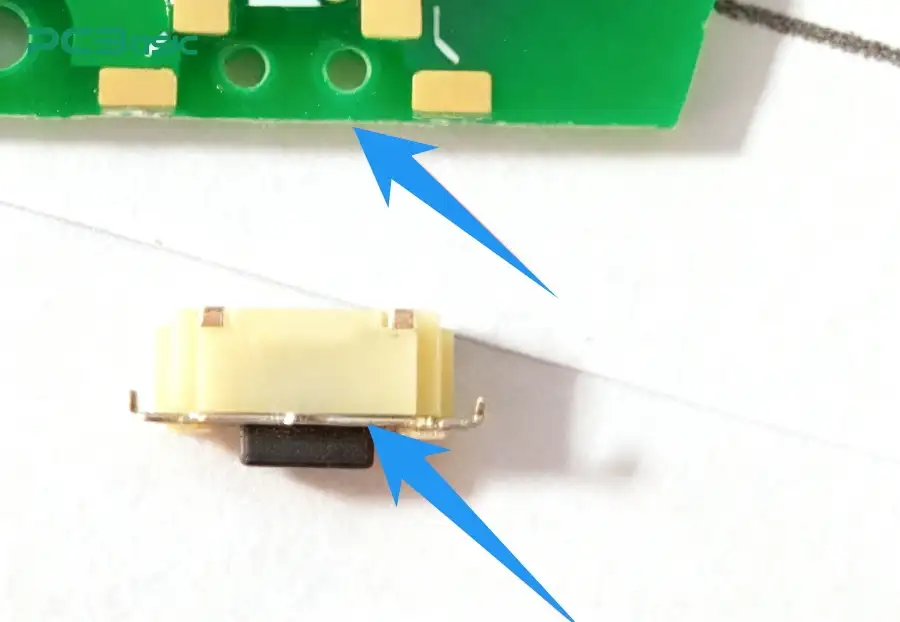

Tooling pins without matching holes on PCB

If the corresponding fixture holes are not designed on your PCB, we recommend removing the fixture pins of the component before soldering to avoid installation interference or pad lifting. You can also refer to the official data sheet of the component to confirm the size of its tooling pins and the recommended layout. Please note to add the corresponding tooling holes at the appropriate positions during the next design.
