Quality management process

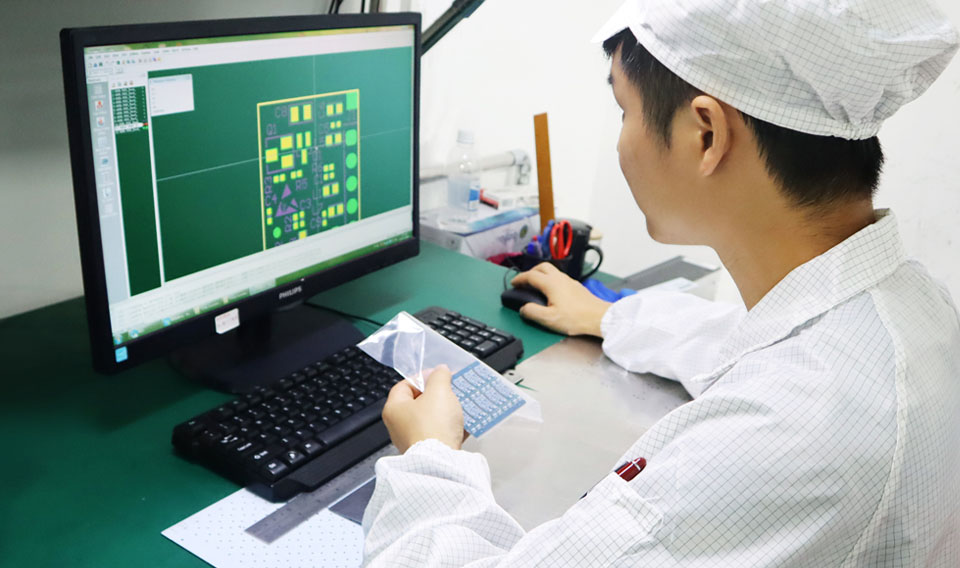

01 Process review

Confirm the special requirements of customers and the special characteristics of products (the mounability and temperature resistance of structural special-shaped parts)

Whether the BOM and PCB net making data are up-to-date and whether there are items to be confirmed

Evaluate whether the shape (panel structure) process of PCB can be mass produced

Manufacturability evaluation of PCB special pad process (chemical gold, OSP, tin spray, SMD, nsmd, etc.)

Design different opening ways and select different mesh steel sheets for different PCB processes

Verification and evaluation of compatibility between special shaped parts and other special parts and PCB pads
02 Incoming material inspection (IQC)
Inspection purpose: put an end to t he aging loss caused by bad process and unqualified quality of renovated materials

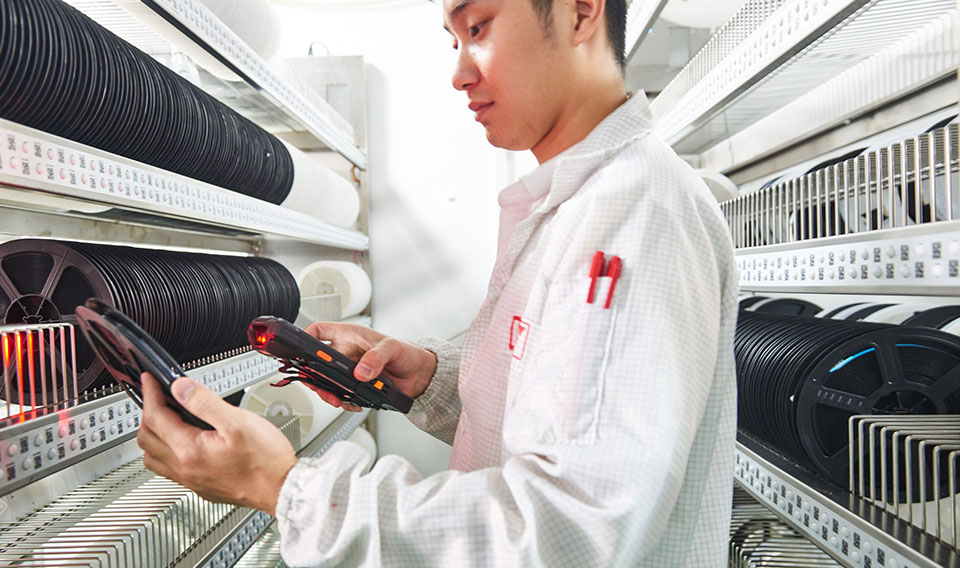

03 Material intelligent storage
Intelligent material management and error prevention system

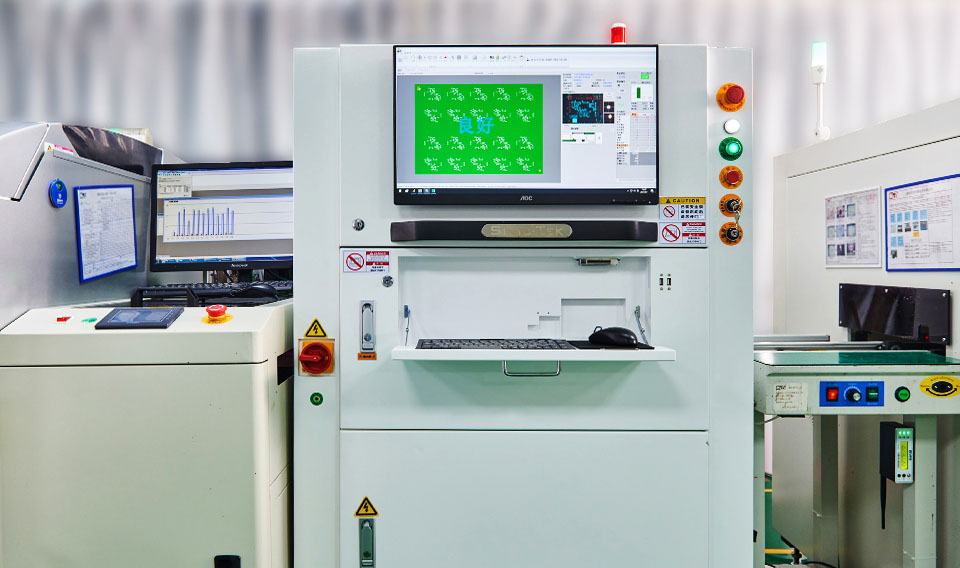

04 SPI solder paste detection
Detection purpose: to find out solder paste printing defects in advance to avoid flowing into the next process

PCB inspection and PCB quality control of PCBasic factory follow the industry standards with PCBA inspection tests such as PCB visual inspection, automated optical inspection PCB, PCB quality inspection, and other PCB inspection tools.

The PCB inspection equipment we use is fully automated to ensure quality and precision. We use a PCB inspection machine with an embedded PCB inspection system, a PCB visual inspection automated machine, and automatic optical inspection PCB machinery to provide our quality control services. Combining all the above with industry top PCB quality control methods and circuit board inspection knowledge gained over years of experience, we can ensure perfect PCB/PCBA every single time.
