IPC Standards: Definition, Classes, and Key PCB Manufacturing Guidelines

691

Today, with the rapid development of the electronics industry, devices are getting smaller, faster and more powerful in function. This places higher demands on the quality and reliability of the products. IPC standards are a set of globally applicable industry specifications used to ensure that printed circuit boards (PCBs) and electronic products meet performance, safety and consistency standards. From design and manufacturing to final inspection, IPC electronics standards provide engineers, manufacturers, assemblers and quality inspectors with unified operating standards.



Today, electronic products are widely used in key fields such as consumer electronics, aerospace, automotive electronics and medical equipment. The use of appropriate IPC standards can help companies reduce product defects, enhance compatibility, increase production efficiency, and meet international regulatory requirements, thereby strengthening market competitiveness.



This article will provide a detailed introduction to the basic concepts of IPC standards, different performance classes, common defect types, assembly requirements, and inspection processes, helping you fully understand the quality control specifications in electronic manufacturing.



ipc standards



What Are IPC Standards?



IPC standards are a set of globally recognized technical specifications developed by IPC (Association Connecting Electronics Industries). IPC was founded in 1957 and was originally called "Institute of Printed Circuits". Now, it has become a global industry organization dedicated to establishing standards for electronic manufacturing.



IPC standards cover the entire PCB lifecycle, including PCB design, material selection, soldering processes, assembly procedures, functional testing, quality inspection and final delivery. These IPC standards provide unified quality standards and technical requirements for the electronics manufacturing industry, which helps to enhance product consistency, ensure functional reliability and reduce failure rates.



Currently, more than 4,000 enterprises worldwide are using IPC electronic standards in their production processes. These IPC standards help ensure that the products have good reliability, global interoperability, and compliance with international regulations.



Several common IPC standards include IPC-A-600, IPC-A-610, IPC-6012 and J-STD-001.



By implementing these standards, enterprises can better control production quality, reduce rework, enhance customer satisfaction, and strengthen their competitiveness in the global market.



PCB services from PCBasic

Why Implement IPC Standards?



In the production process of PCBs and electronic products, implementing IPC standards can bring multiple practical benefits, covering the entire process from design to delivery.



Improved Product Quality



The use of IPC electronics standards can help manufacturers reduce process variation, lower the number of reworks, and decrease customer complaints and warranty claims caused by product issues during the production process. Because IPC standards have clear technical specifications for every process and detail, it can ensure that the structure and performance of the product remain consistent at all times.



Better Communication



Whether they are designers, engineers or quality inspectors, everyone is using the same terminology, definitions and evaluation criteria. This can reduce misunderstandings, enhance communication efficiency, and ensure that all departments work based on the same technical foundation.



Cost Control



Standardized processes and standards can significantly reduce the incidence of design errors, rework and product failures. Reducing these problems means saving time and costs, and at the same time, it can also speed up time-to-market.



Market Access & Competitive Edge



Many industry customers, especially those in medical, aerospace and automotive electronics, explicitly require suppliers to use products that meet IPC standards. Once a company achieves IPC compliance, it can meet the requirements of higher-level customers and thus seize greater market opportunities.



Training and Certification



IPC soldering standards like J-STD-001 form the basis for training and certification in the global electronics manufacturing industry. By implementing these standards, a unified training system can be provided for operators, their technical proficiency can be enhanced, human errors can be reduced, and thereby the reliability and consistency of overall production can be improved.



ipc standards

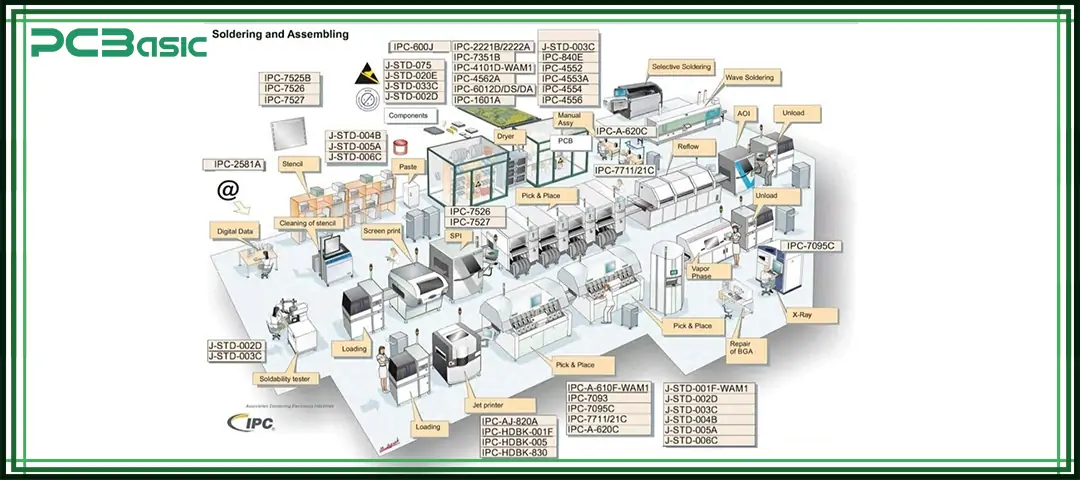

Commonly Used IPC Standards Across the PCB Lifecycle



At present, there are over 300 active IPC standards, each targeting a specific phase in the PCB design and manufacturing process. The following are some of the most critical ones:



IPC Standard

Purpose

IPC-2221

Generic PCB design rules

IPC-2222 / 2223 / 2226

Rules for rigid, flex, and HDI designs

IPC-4101

Base material and laminate specifications

IPC-6011 / 6012 / 6013 / 6018

Performance specifications for rigid, flex, HDI, and RF boards

IPC-A-600

Acceptability of bare printed boards

IPC-A-610

Acceptability of finished assemblies

IPC-A-620

Requirements for cable and wire harness assemblies

J-STD-001

Core IPC soldering standards

IPC-7711/7721

PCB repair and rework methods

IPC-TM-650

PCB test methods and validation techniques



Each IPC standard ensures that the board meets expectations in appearance, structure, durability, and reliability.



IPC Performance Classes: Class 1, 2, and 3



IPC standards classify electronic products into three performance classes based on the harshness of the usage environment and reliability requirements. Each class is applicable to different product types, and the production and inspection requirements also vary.



Class 1 – General Electronic Products



This class is applicable to consumer products with low functional requirements and short service lives, such as TV remote controls, toys and LED lights. For this type of product, IPC standards only require basic electrical functions and do not emphasize appearance and detail quality. Minor scratches, misalignments or other cosmetic defects are allowed as long as they do not affect usage.



Class 2 – Dedicated Service Electronic Products



Class 2 is mainly used in commercial and industrial environments and has certain requirements for reliability and continuous operation. Typical applications include laptops, tablets, communication devices and industrial controllers. This type of product needs to have a long service life and high stability. IPC standards have stricter requirements for Class 2 than for Class 1, such as higher solder joint quality, fewer appearance defects, higher consistency and functional reliability.



Class 3 – High Reliability Electronics



Class 3 has the highest requirements among all classes. It is suitable for scenarios with extremely high requirements for safety and stability, such as medical equipment, military equipment, and aerospace systems. Such products must operate without failure under high temperatures, vibrations or other extreme conditions. IPC standards for Class 3 products are the most rigorous, including minimal tolerances, zero-defect soldering, high material stability, and strong structural integrity. Any details that affect performance are not allowed.



Factor

Class 1

Class 2

Class 3

Life Cycle

Short

Long

Very Long

Quality

Basic functionality

Stable and consistent

Critical, no compromise

Defect Tolerance

Accepts visual and minor defects

Minor defects allowed if function is stable

No defects allowed

Inspection Level

Basic check

Visual + functional tests

Strict testing (X-ray, cross-section, etc.)

Assembly Standard

Basic soldering

Improved solder quality

Strict IPC soldering (e.g., J-STD-001)

Applications

Toys, remote controls

Phones, tablets, industrial devices

Pacemakers, military, aerospace systems

Environment

Indoor, low stress

Moderate conditions

Extreme conditions

Compliance Need

Low or none

Moderate (some regulation)

High – must meet global standards



IPC Class Differences in PCB Assembly



During the assembly stage of electronic products, IPC standards continue to play a significant role, especially between Class 2 and Class 3, where there are key differences. The following is a comparison of several main aspects:



Cleanliness Requirements



Under the requirements of Class 3, all assembled circuit boards must be thoroughly cleaned to remove soldering residues, flux and other contaminants. This is to prevent electrical failure in critical applications, such as medical, military and avionics equipment. In contrast, Class 2 allows minor flux residues as long as they do not affect functionality, which is acceptable for standard industrial or consumer electronics.



Component Alignment



According to the IPC electronics standard, the mounting components of Class 3 must be strictly aligned, requiring that the component pins be completely in the center of the pad, and the offset must be controlled within the minimum tolerance range. Any deviation may be regarded as a defect. In Class 2, the requirements are relatively lenient. As long as the components can be soldered normally and maintain their functionality, a slight misalignment is allowed.



Barrel Fill for Through-Hole Leads



Class 3 has stricter requirements for the soldering of through-hole components. It is necessary to ensure that the solder fills at least 75% of the hole wall to guarantee the mechanical strength and conductivity of the solder joint. In contrast, the standard of Class 2 is 50%, which is applicable to products where electrical performance is not so critical.



The following is a simplified comparison table:



Assembly Factor

Class 2

Class 3

Barrel Fill

Minimum 50%

Minimum 75%

Soldering Defects

Minor defects acceptable

Zero defects allowed



In Class 3 production, IPC soldering standards must be fully adhered to. This means that each solder joint must meet the requirements of reliable mechanical bonding and excellent electrical connection. Defects such as cold solder joints, insufficient solder, or misalignment are not acceptable. These high standards apply to electronic devices where any failure is intolerable.





About PCBasic



Time is money in your projects – and PCBasic gets it. PCBasic is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.




Common PCB Defects and IPC Guidelines



Even if IPC standards are strictly followed, some common defects may still occur during the production and assembly of PCBs. The following are several typical failures, as well as how the corresponding IPC electronic standards evaluate and regulate their handling:



Annular Ring Breakouts



This refers to the situation where, during the drilling process, the edge of the hole does not fully align with the copper pad, resulting in partial breakout or a missing section of the annular ring.



In IPC Class 2, a breakout is acceptable if the angle is less than 90° and does not impact electrical continuity or structural integrity. However, in Class 3, any breakout is considered unacceptable. It must be entirely avoided to ensure product reliability and long-term durability.



Solder Bridging / Shorts



Solder bridging occurs when excess solder or misaligned paste printing causes two adjacent pads or pins to be unintentionally connected, forming a short circuit. This can lead to component failure, system malfunction, or complete board rejection.



To prevent solder bridging, IPC soldering standards (such as J-STD-001) define strict requirements for stencil design, solder paste volume, reflow profile, and component placement accuracy. By carefully controlling these factors, the risk of solder bridging can be significantly reduced.



Open Joints



An open joint refers to a solder connection that fails to establish reliable electrical continuity. It often results from insufficient wetting between the pad and the component lead.



According to IPC-A-610, all solder joints must show a continuous and complete wetting surface, where solder properly covers both the pad and the lead. Inspection should be carried out using magnification or microscopes to ensure there are no cold joints, insufficient solder, or open circuits.



Component Shift / Misalignment



Class

Acceptable Shift

Class 1

50% pad reduction

Class 2

50% pill pad

Class 3

25% or less



Once these defects are identified, they all need to be judged and reworked in accordance with the corresponding IPC standards to ensure that the final product meets the specified quality class requirements.



ipc standards


Cross-Section Verification and IPC Inspection Standards



In electronic manufacturing, especially for high-reliability products of Class 3, cross-section or micro-section analysis is a key quality inspection method. It is a structural inspection method recommended by IPC standards, used to check whether the interior of the circuit board meets the standards.



Why It Matters



Cross-section analysis is a destructive test that requires cutting the PCB sample vertically, polishing and examining its internal structure under a microscope. Through cross-section analysis, engineer      s can evaluate the following:



•  Barrel Fill: Checks whether the through-hole is sufficiently filled with solder.



•  Copper Plating Thickness: Measures the thickness of copper plating in the vias or inner layers to ensure compliance with IPC requirements.



•  Delamination: Detects whether there is any separation or peeling between layers of the board material.



•  Voids or Cracks: Identifies bubbles, micro-cracks, or other hidden internal defects.



If these structural problems are not detected in time, they may lead to short circuits, open circuits or product failure.



Related IPC Standards



Cross-section inspection must follow applicable IPC standards, including:



• IPC-2220 series: Design rules for test coupons used specifically for micro-sectioning.



• IPC-6012: Specifies quality requirements for rigid PCBs, including minimum annular ring width, copper plating thickness, and dielectric thickness.



These standards ensure the cross-section results are valid for judging product compliance.



Other Important Electronics Industry Standards



In electronics manufacturing, in addition to strictly following IPC standards, companies also need to meet other widely recognized international certifications. These standards work together with IPC electronics standards to improve product safety, environmental compliance, and overall quality management.



UL Certification (Underwriters Laboratories)



UL is a safety certification widely recognized in the U.S. and Canada. UL certification confirms that an electronic product is safe to use and has proper fire resistance. If your product is sold in North America, UL is often a required standard. Many customers also use UL as a key requirement when selecting suppliers.



RoHS Directive (Restriction of Hazardous Substances)



RoHS is an environmental regulation from the European Union. It limits the use of certain harmful materials—such as lead, cadmium, mercury, and hexavalent chromium—in electronics. RoHS works closely with IPC standards, especially in areas like lead-free soldering. Today, many countries follow RoHS to ensure their products meet environmental safety requirements.



ISO Quality and Environmental Standards



•  ISO 9001: This quality management system ensures consistent processes and product quality from design to delivery.



•  ISO 14001: This standard focuses on environmental management and requires companies to reduce waste and control their environmental impact.



By combining IPC standards with UL, RoHS, and ISO systems, electronics manufacturers can build a complete and reliable quality framework. This helps control every stage of production—from raw materials to final delivery—and supports entry into global markets while improving customer trust.



PCB assembly services from PCBasic

Conclusion



Whether you're making consumer electronics or aerospace systems, using IPC standards is key to ensuring product quality. These international standards cover every step of IPC electronics manufacturing — from PCB design and material selection to IPC soldering standards and final inspection.



Understanding IPC performance classes, defect criteria, and testing methods helps manufacturers reduce mistakes, improve reliability, and keep customers satisfied. Working with IPC-certified factories and following IPC standards at every stage allows companies to consistently produce high-quality electronics and stay competitive.



Simply put, in electronics manufacturing, IPC standards are not optional — they are a must for quality assurance.
